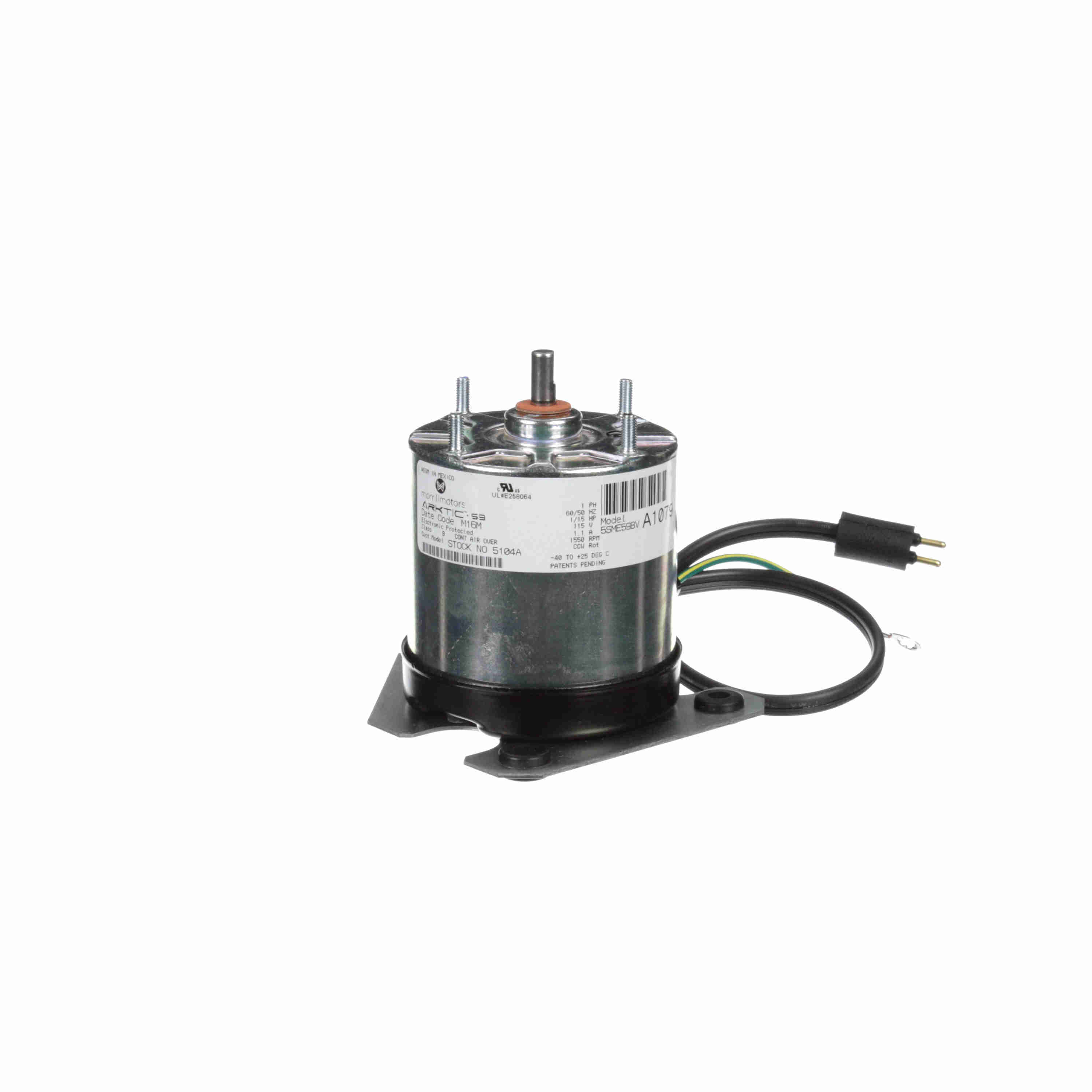

Morrill 5104A 1/15 HP 1550 RPM 115 Volts ARKTIC 59 ECM Refrigeration Motor

Dreisilker SKU: MO-RBC-5104A

(No reviews yet) Write a Review
$181.11
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

1/15 HP 1550 RPM 115 Volts 1.30 Amps CCW Rotation

Technical specifications

Brand

Morrill Motors

Catalog Number

5104A

Product Category

HVAC/R Motors > Refrigeration Motors

HP

0.07

Volts

115

Frequency

60/50

Amps

1.1

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1550

Number of speeds

-

Number of Phases

1

Enclosure Type

Totally Enclosed Air Over

Rotation

Counterclockwise Opposite Shaft End

Mounting Type

Extended Studs

Frame Type

3.3

Frame Material

Rolled Steel

Shaft Diameter (In.)

0.312

Shaft Extension (In.)

1.01

Shaft Type

Flat

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension (In.)

5.14

Electrical Type

Electronically Commutated Motor

Duty

Continuous Air Over

Motor Orientation

VSD

Service Factor

-

Type of Overload Protector

Electronically Protected

Insulation Class

B

Max Ambient

25°C

UL

Yes

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

NOHP
