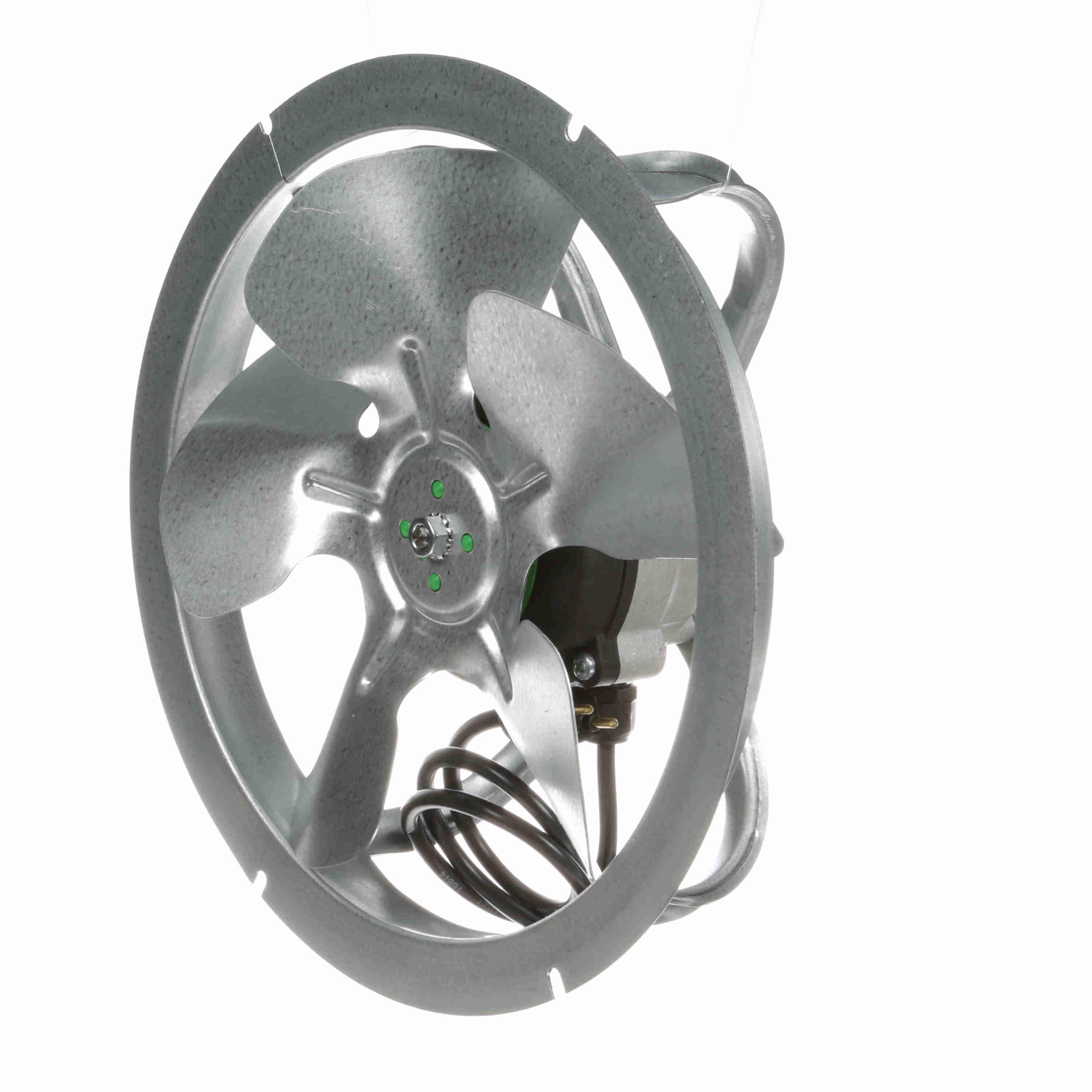

Morrill 5R036 16 W 1450 RPM 115V KRYO SSC ECM Refrigeration Motor

Dreisilker SKU: MO-RBC-5R036 | UPC: 815585025337

(No reviews yet) Write a Review
$188.06
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

This product typically ships within one business day.

Morrill 5R036 Product Description

5R036

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Morrill 5R036 Technical specifications

Brand

Morrill Motors

Catalog Number

5R036

Product Category

HVAC/R Motors > Fan Pack Motors

HP

-

Volts

115

Frequency

60

Amps

0.4

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1450

Number of speeds

-

Number of Phases

1

Enclosure Type

Totally Enclosed Air Over

Rotation

Clockwise Opposite Shaft End

Mounting Type

Shroud

Frame Type

Unit Bearing

Frame Material

Aluminum

Shaft Diameter (In.)

0.250

Shaft Extension (In.)

-

Shaft Type

Not Applicable

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension (In.)

4.39

Electrical Type

Electronically Commutated Motor

Duty

Continuous Air Over

Motor Orientation

Any

Service Factor

-

Type of Overload Protector

Electronically Protected

Insulation Class

B

Max Ambient

55°C

UL

Yes

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

NOHP
