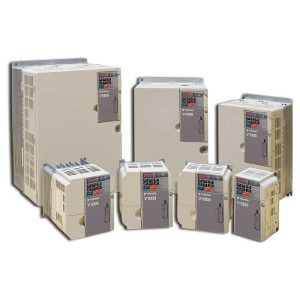

Yaskawa VU4A0018FAA 10 HP 380-480 Volts 3 Phase V1000 AC Drive

Dreisilker SKU: Y-VU4A0018FAA

(No reviews yet) Write a Review
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Yaskawa VU4A0018FAA Product Description

The Yaskawa VU4A0018FAA is a V1000 AC Drive rated for 10 HP (Normal Duty) and 7.5 & 10 HP (Heavy Duty) 380-480 Volt 3. The Yaskawa V1000 AC Drive is commonly used with conveyor, packaging, fan, pump, food & beverage, industrial washer, and compressor applications.

Typical Applications:

Compressor, Conveyor, Fan, Food & Beverage, Industrial Washer, Packaging, Pump

Features:
  • Up to 30% smaller than the competition
  • Current vector control, open loop
  • RoHS compliance
  • On-line tuning
  • Induction motor (IM) or permanent magnet motor (PM) operation
  • Function Block Diagram (FBD) programming via DriveWorksEZ
  • Starting torque of 200% at 0.5 Hz
  • Side-by-side installation due to patented hybrid heatsink
  • Removable terminal block with parameter backup function*
  • One-touch copy function with verify
  • Super-fast 2 ms scan cycle with dual CPU
  • EN954-1 Safety Cat. 3, Stop Cat. 0
  • Increased vibration resistance, from 20 Hz to 50 Hz (0.65G)
  • 1 in 10,000 failure rate
  • Swing PWM function to decrease noise at low carrier frequencies
  • Pre-maintenance function
  • Modbus communication
  • Cooling fan replacement without tools
  • MTBF: 28 years
  • Short Circuit Current Rating (SCCR): 30kA rms symmetrical
  • Common programming with all other Yaskawa drives
  • DriveWizard software available at no extra cost

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Yaskawa VU4A0018FAA Technical specifications

Normal Duty Nominal HP

10

Heavy Duty Nominal HP

7.5 & 10

Normal Duty Rated Output Currents (Amps)

17.5

Heavy Duty Rated Output Currents (Amps)

14.8

Volts

380-480

Phase

3

Height (In.)

10

Width (In.)

5.51

Depth (In.)

5.51

Weight (Lbs.)

8.4

Enclosure

NEMA 1

DEM Reference

CIMR-VU4A0018FAA

Drawing Diagram

VU4A0018FAA

Drawing Diagram
