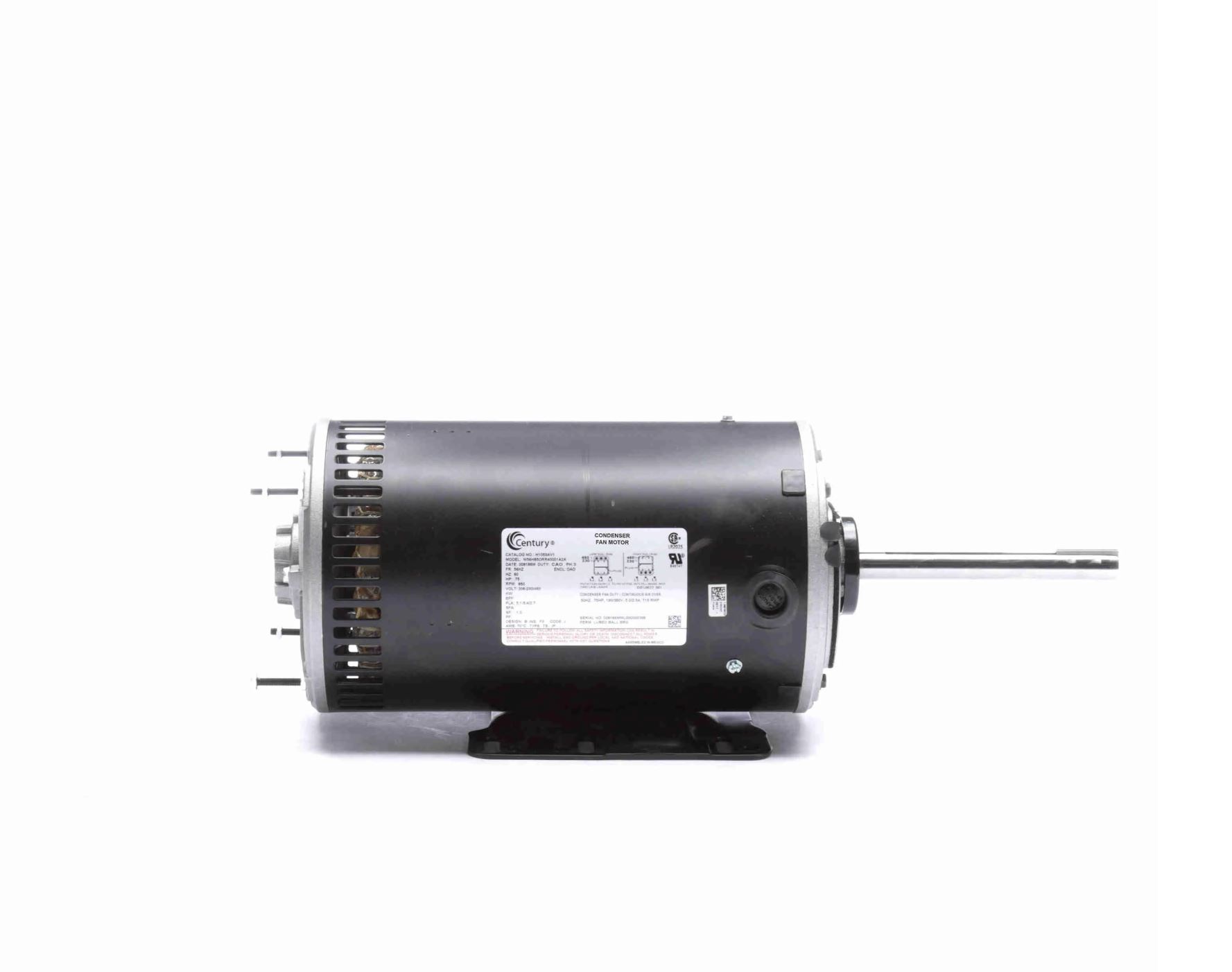

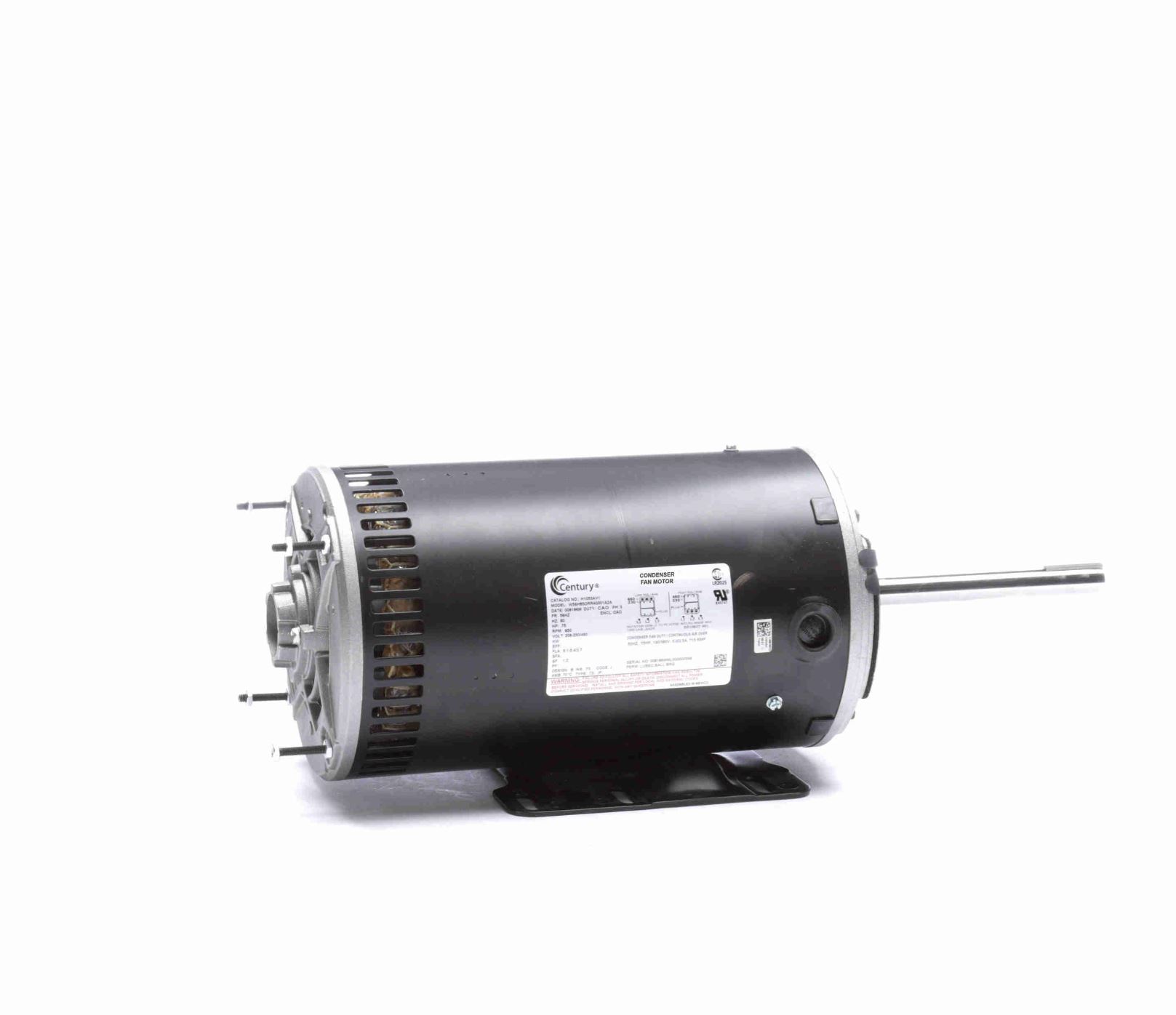

Century H1053AV1 1 HP 850 RPM 460/208-230 Volts Condenser Fan Motor

Dreisilker SKU: CE-RBC-H1053AV1

(No reviews yet) Write a Review
$590.45
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

The Century H1053AV1 is a condenser fan motor rated at 1 HP and 850 RPM for 460/208-230 volts 3 phase supply and is part of Century's JuggerNaut Condenser Fan Motors series of commercial condenser fan motors. The H1053AV1 has a 56HZ frame with a 5/8 shaft diameter. It's an open air over motor and has double sealed ball bearings.

What's the application of this motor? This motor is a condenser fan motor used on outdoor condenser units as part of a central air conditioning systems.

Century H1053AV1 Product Features:
  • 70°C max ambient temperature
  • Inverter duty
  • Quick-connect design
  • Automatic reset thermal protector
  • Non-conductive grease bearing
  • Double sealed ball bearings
  • Shaft slinger
  • VCD™ Voltage Change Device
  • Class F insulation
Century H1053AV1 Product Benefits:
  • 70°C ambient temperature for high temperature operating conditions.
  • Inverter duty wire for use with variable frequency drives.
  • Quick-connect design.
  • Automatic reset thermal protector protects against motor overload and automatically resets.
  • Non-conductive bearing grease to reduce conduction of bearing currents.
  • Double sealed ball bearings are pre-lubricated with a special formulation for moisture resistance and provides extra-long life.
  • Shaft slinger keeps water and dirt out of motor in vertical, shaft up installations.
  • VCD™ Voltage Change Device to quickly change voltage on the spot.
  • UL and CSA recognized Class F insulation for 70°C (158°F) max ambient conditions provides longer motor life.

Technical specifications

Brand

Century

Catalog Number

H1053AV1

Product Category

HVAC/R Motors > Condenser Fans Motors

HP

1

Volts

208-230/460

Frequency

60

Amps

5.1-5.4/2.7

RPM (Number of Poles)

8 (721 RPM to 900 RPM)

RPM (Nameplate)

850

Number of speeds

1

Number of Phases

3

Enclosure Type

Open Air Over

Rotation

Reversible

Mounting Type

Rigid Base

Frame Type

56HZ

Frame Material

Rolled Steel

Shaft Diameter (In.)

0.625

Shaft Extension (In.)

6

Shaft Type

Keyed

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension (In.)

18.85

Electrical Type

Three Phase

Duty

Continuous

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

F

Max Ambient

70°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

AOS#H1053A
