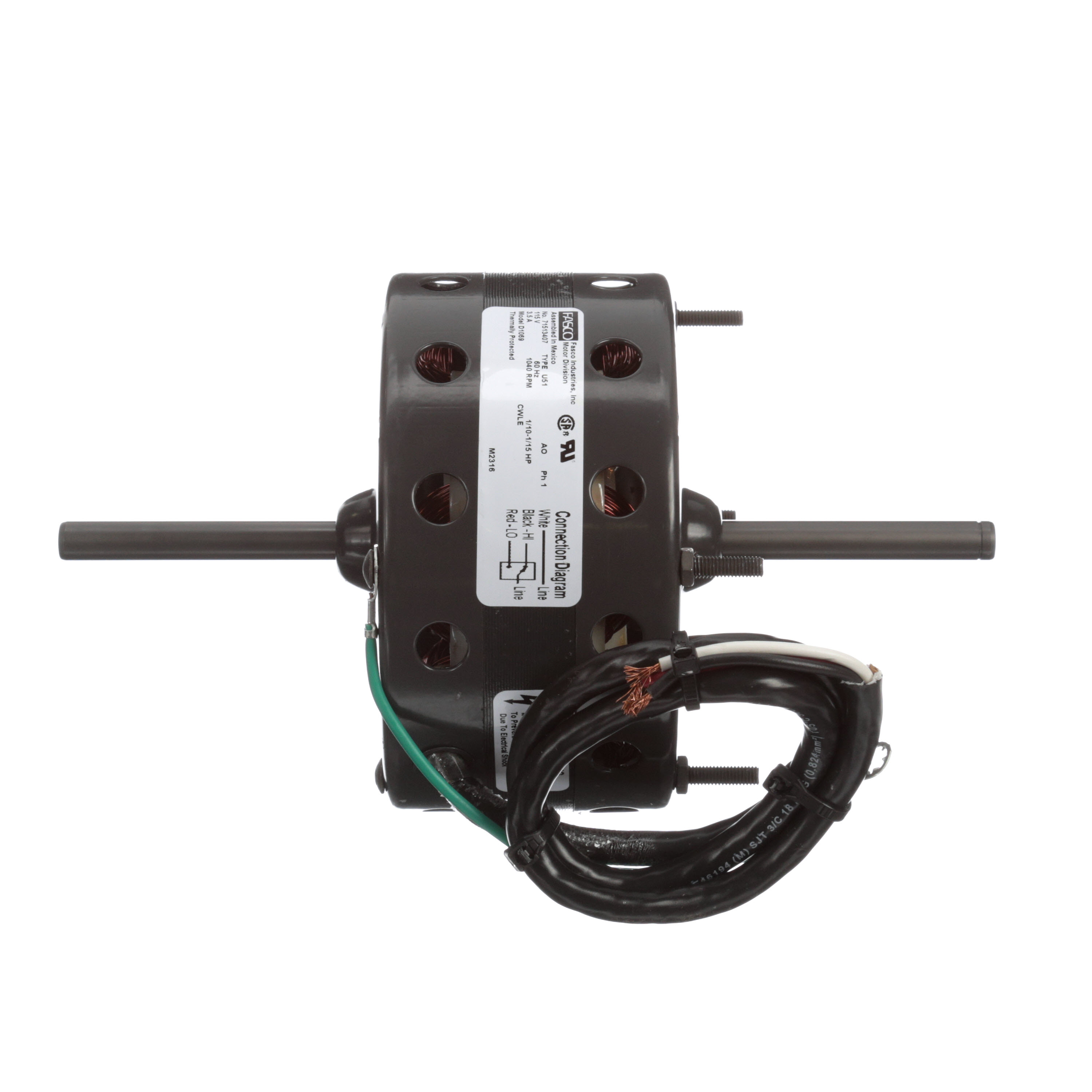

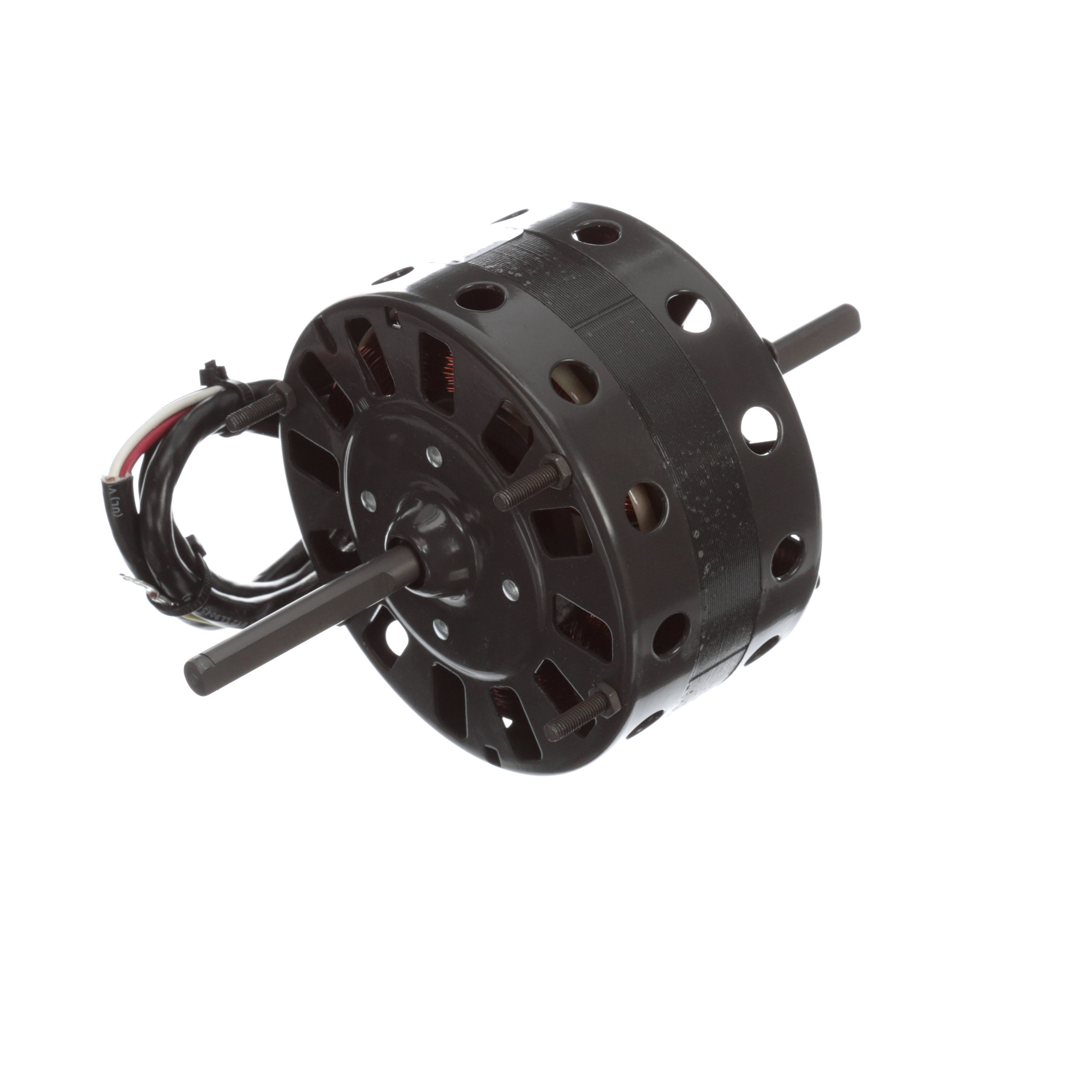

Fasco D1069 1/10 HP 1040 RPM 115 Volts OEM Direct Replacement Motor

Dreisilker SKU: FA-RBC-D1069 | UPC: 815585027874

(No reviews yet) Write a Review
$233.41
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Glen Ellyn, IL

2 units in stock

Fasco D1069 Product Description

The Fasco D1069 is a Champion Cooler OEM Direct Replacement Motor. Some of the specifications of the Fasco D1069 Champion Cooler OEM Direct Replacement Motor include: Fasco D1069 1/10 HP 1040 RPM 115 Volts OEM Direct Replacement Motor. The warranty information for the Fasco D1069 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D1069 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D1069 include the following: D1069, 1/10 HP, 1040 RPM, 115 Volts, 1/10 HP 1040 RPM 115 Volts, 1/10 1040 115,FA#D1069

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D1069 Technical specifications

Brand

Fasco

Catalog Number

D1069

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

1/10

Volts

115

Frequency

60

Amps

3.5

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1050

Speeds

2

Phase

1

Enclosure Type

Open Air Over

Rotation

Counterclockwise Shaft End

Mounting Type

Extended Studs

Frame Type

42

Frame Material

Na

Shaft Diameter

3/8 (in.)

Shaft Extension

3.00 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

8.63 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

A

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D1069
