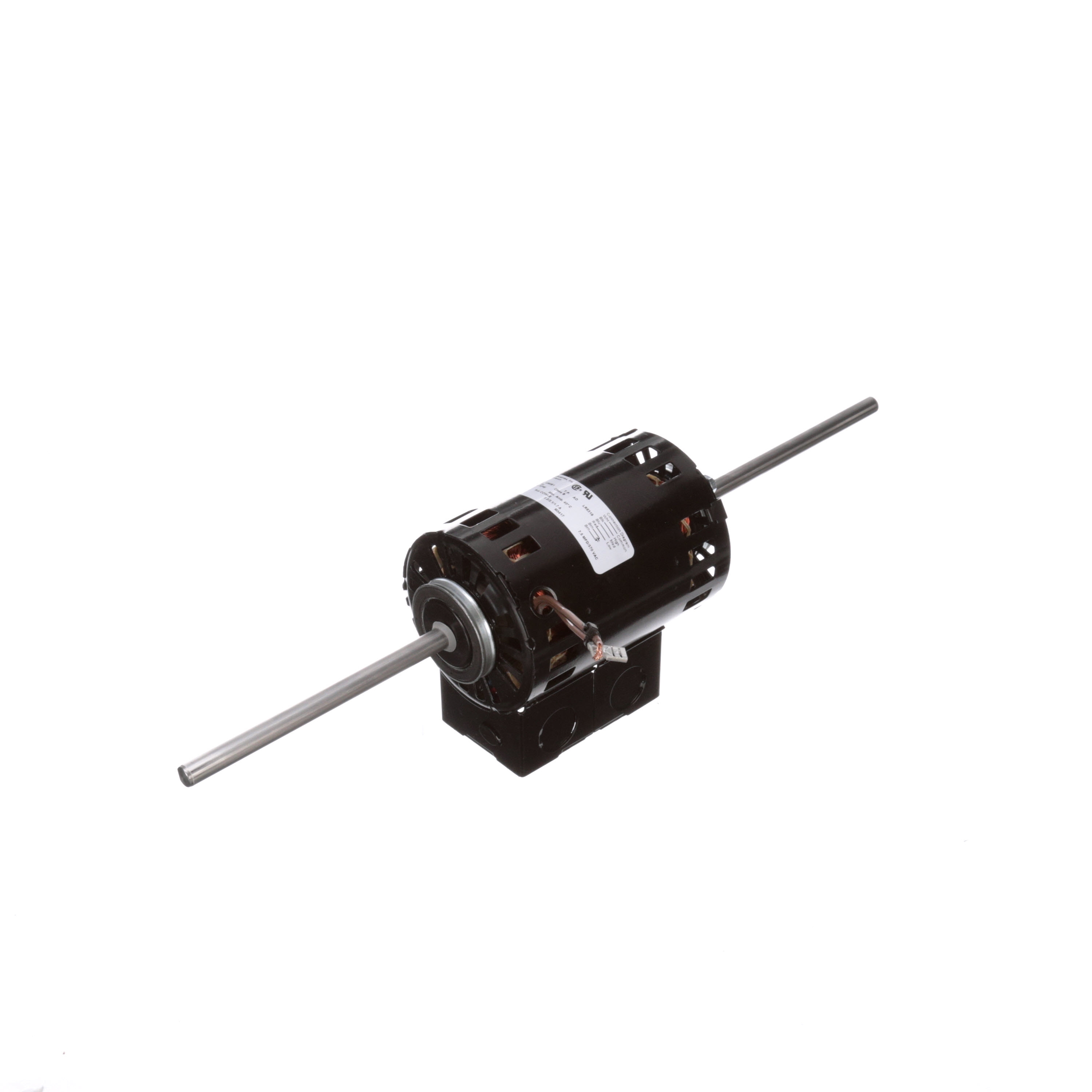

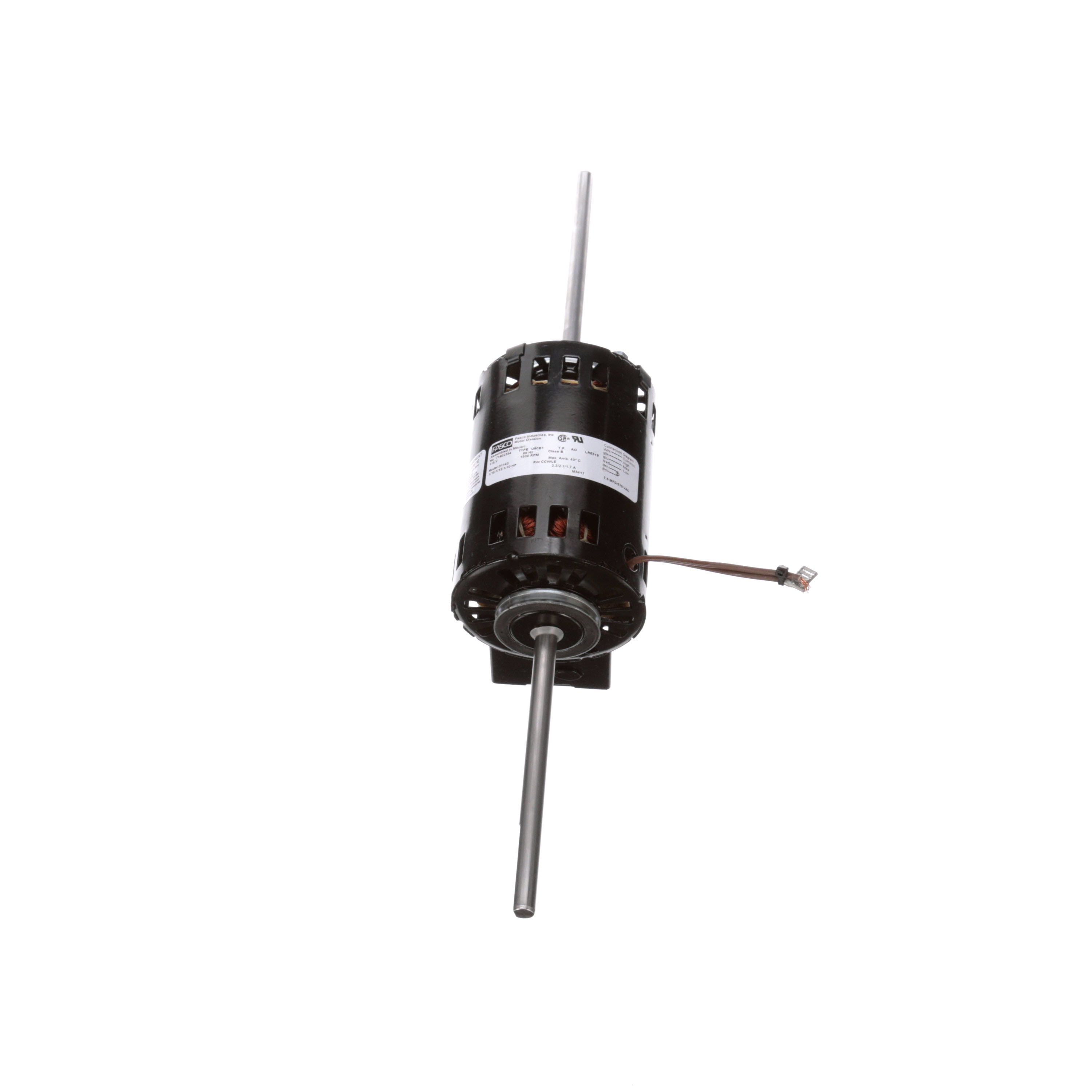

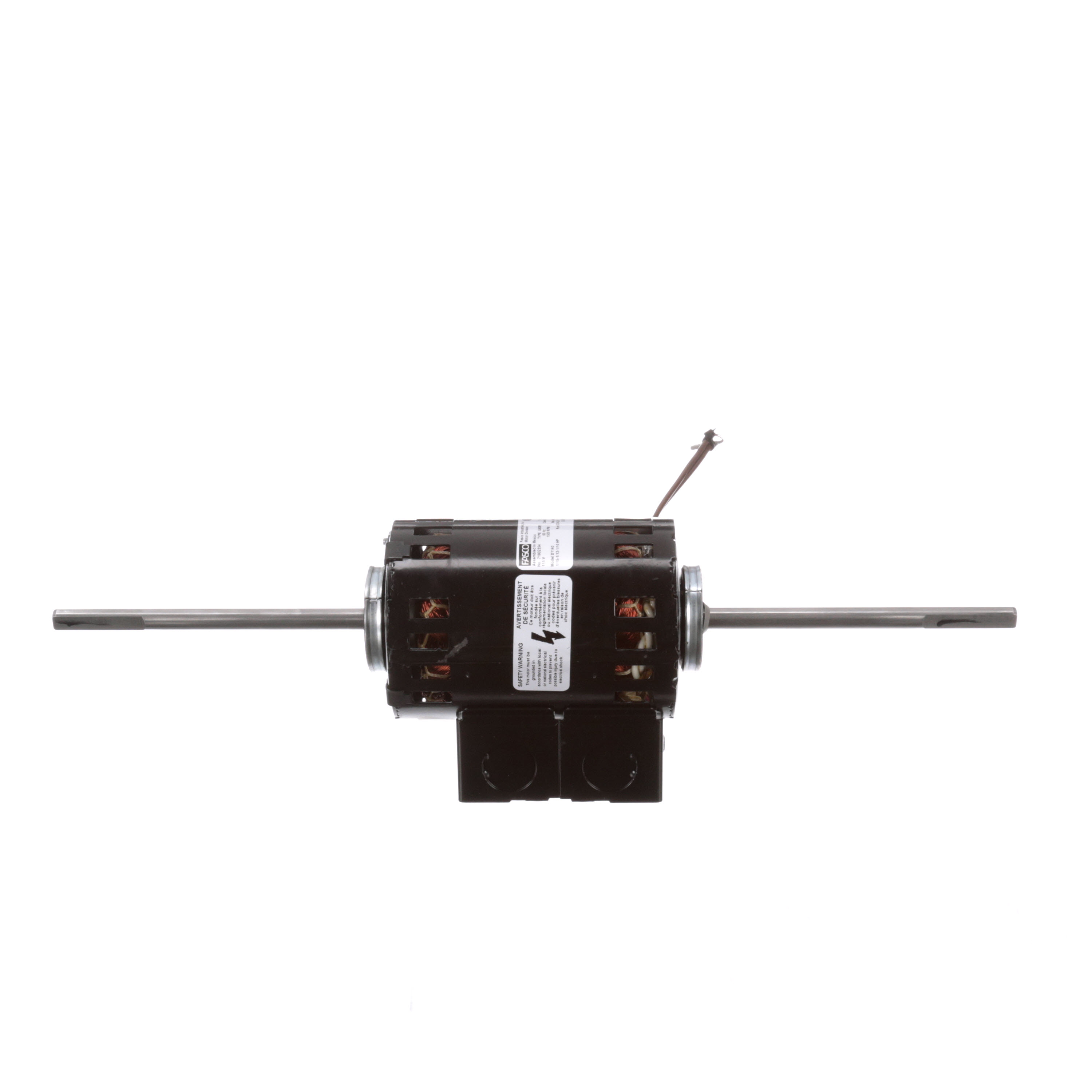

Fasco D1140 1/10 HP 1500 RPM 115 Volts OEM Direct Replacement Motor

Dreisilker SKU: FA-RBC-D1140 | UPC: 8.18508E+11

(No reviews yet) Write a Review
$299.58
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Marietta, GA (Atlanta)

1 units in stock

Fasco D1140 Product Description

The Fasco D1140 is a Mcquay OEM Direct Replacement Motor. Some of the specifications of the Fasco D1140 Mcquay OEM Direct Replacement Motor include: Fasco D1140 1/10 HP 1500 RPM 115 Volts OEM Direct Replacement Motor. The warranty information for the Fasco D1140 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D1140 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D1140 include the following: D1140, 1/10 HP, 1500 RPM, 115 Volts, 1/10 HP 1500 RPM 115 Volts, 1/10 1500 115,FA#D1140

Fasco D1140 Technical specifications

Brand

Fasco

Catalog Number

D1140

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

1/10

Volts

115

Frequency

60

Amps

2.20/2.10/1.70

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1500

Speeds

3

Phase

1

Enclosure Type

Open Air Over

Rotation

Counterclockwise Lead End

Mounting Type

Resilient Rings

Frame Type

3.3 (in. diameter)

Frame Material

Steel

Shaft Diameter

3/8 (in.)

Shaft Extension

5.625 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

16.05 (in.)

Electrical Type

Permanent Split Capacitor

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D1140
