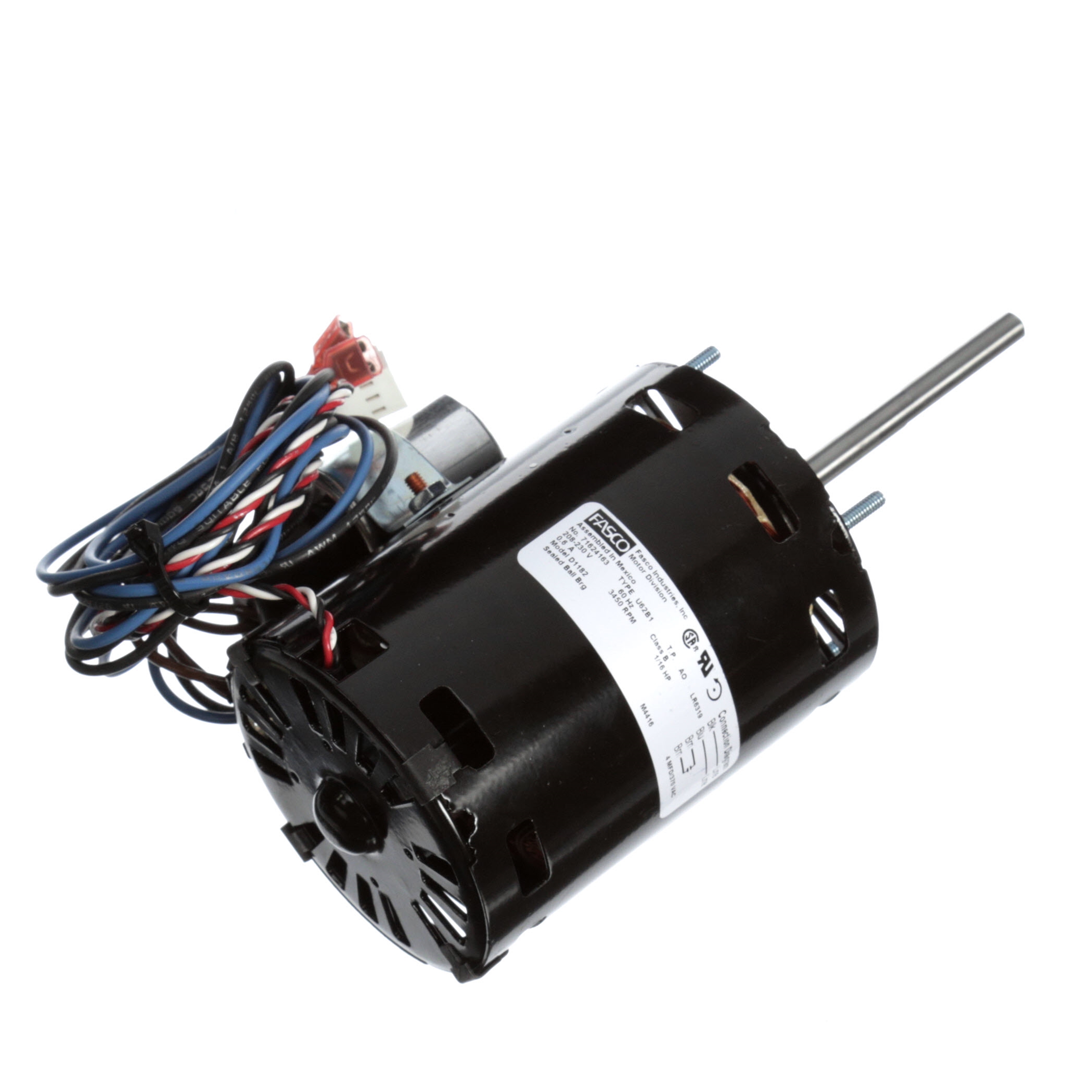

Fasco D1182 1/16 HP 3450 RPM 208-230V OEM Direct Replacement Motor

Dreisilker SKU: FA-RBC-D1182 | UPC: 815585028031

(No reviews yet) Write a Review
Fasco D1182 1/16 HP 3450 RPM 208-230 Volts OEM Direct Replacement Motor
$412.38
Product Availability
Ships same day if purchased before 2:00 pm CST (weekdays).
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco D1182 Product Description

The Fasco D1182 is a Carrier OEM Direct Replacement Motor. Some of the specifications of the Fasco D1182 Carrier OEM Direct Replacement Motor include: Fasco D1182 1/16 HP 3450 RPM 208-230 Volts OEM Direct Replacement Motor. The warranty information for the Fasco D1182 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D1182 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D1182 include the following: D1182, 1/16 HP, 3450 RPM, 208-230 Volts, 1/16 HP 3450 RPM 208-230 Volts, 1/16 3450 208-230,FA#D1182

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D1182 Technical specifications

Brand

Fasco

Catalog Number

D1182

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

1/16

Volts

208-230

Frequency

60

Amps

.6

RPM (Number of Poles)

2 (1801 RPM to 3600 RPM)

RPM (Nameplate)

3450

Speeds

1

Phase

1

Enclosure Type

Open Air Over

Rotation

Counterclockwise Shaft End

Mounting Type

Extended Studs

Frame Type

3.3 (in. diameter)

Frame Material

Steel

Shaft Diameter

5/16 (in.)

Shaft Extension

3.35 (in.)

Shaft Type

Double Flat

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

8.16 (in.)

Electrical Type

Permanent Split Capacitor

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D1182
