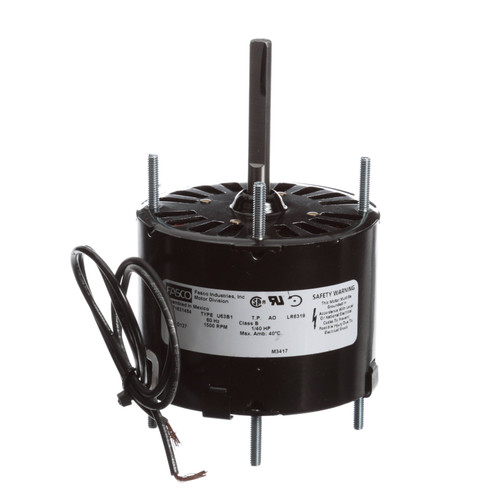

The Fasco D127 is a General Purpose Fan Motor. Some of the specifications of the Fasco D127 General Purpose Fan Motor include: Fasco D127 1/40 HP 1500 RPM 115 Volts General Purpose Fan Motor. The warranty information for the Fasco D127 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D127 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D127 include the following: D127, 1/40 HP, 1500 RPM, 115 Volts, 1/40 HP 1500 RPM 115 Volts, 1/40 1500 115,FA#D127

Fasco D127 Technical specifications

Brand

Fasco

Catalog Number

D127

Product Category

HVAC/R Motors > Fan and Blower Motors > Self Cooled Motors

1/40

Volts

115

Frequency

Amps

1.00

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1500

Speeds

Phase

Enclosure Type

Open Air Over

Rotation

Counterclockwise Shaft End

Mounting Type

Extended Studs

Frame Type

3.3 (in. diameter)

Frame Material

Steel

Shaft Diameter

5/16 (in.)

Shaft Extension

2.30 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

5.08 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

Service Factor

Type of Overload Protector

Thermally Protected

Insulation Class

Max Ambient

40°C

Recognized

CSA

IP Code

KVA Code

DEM Reference

FA#D127
