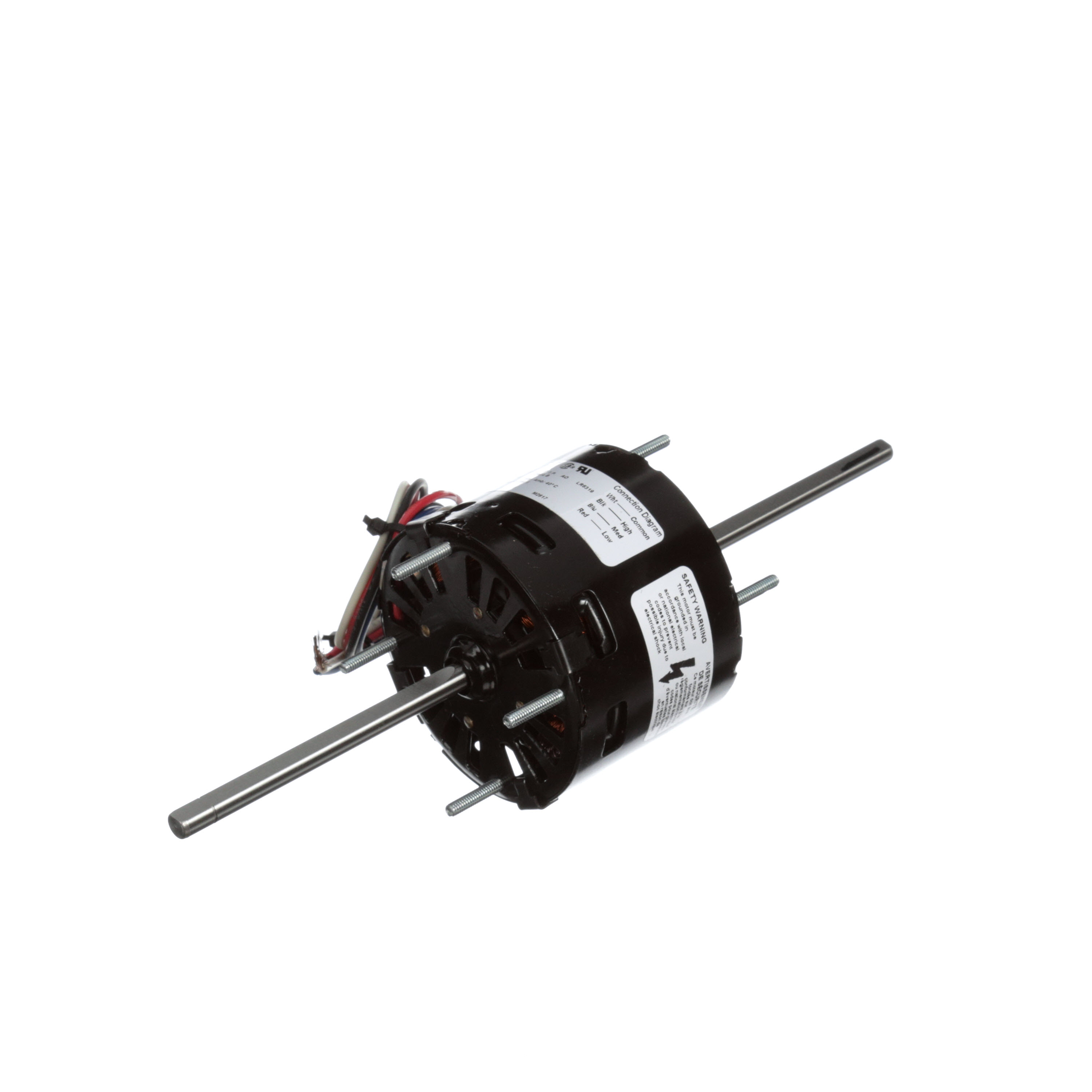

Fasco D128 1/40 HP 1500 RPM 115 Volts General Purpose Fan Motor

Dreisilker SKU: FA-RBC-D128

(No reviews yet) Write a Review
Fasco D128 1/40 HP 1500 RPM 115 Volts General Purpose Fan Motor
$107.26
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

1/40 HP 1500 RPM 115 Volts Double Shaft Open Ventilated Sleeve Bearings 3.3" Diameter 5/16" Shaft Diameter

Technical specifications

Brand

Fasco

Catalog Number

D128

Product Category

HVAC/R Motors > Fan and Blower Motors > Self Cooled Motors

HP

0.03

Volts

115

Frequency

60

Amps

1.30/0.90/0.70

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1500

Number of speeds

3

Number of Phases

1

Enclosure Type

Open Air Over

Rotation

Clockwise Lead End

Mounting Type

Extended Studs

Frame Type

3.3

Frame Material

Steel

Shaft Diameter (In.)

0.313

Shaft Extension (In.)

4.00

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension (In.)

10.63

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D128
