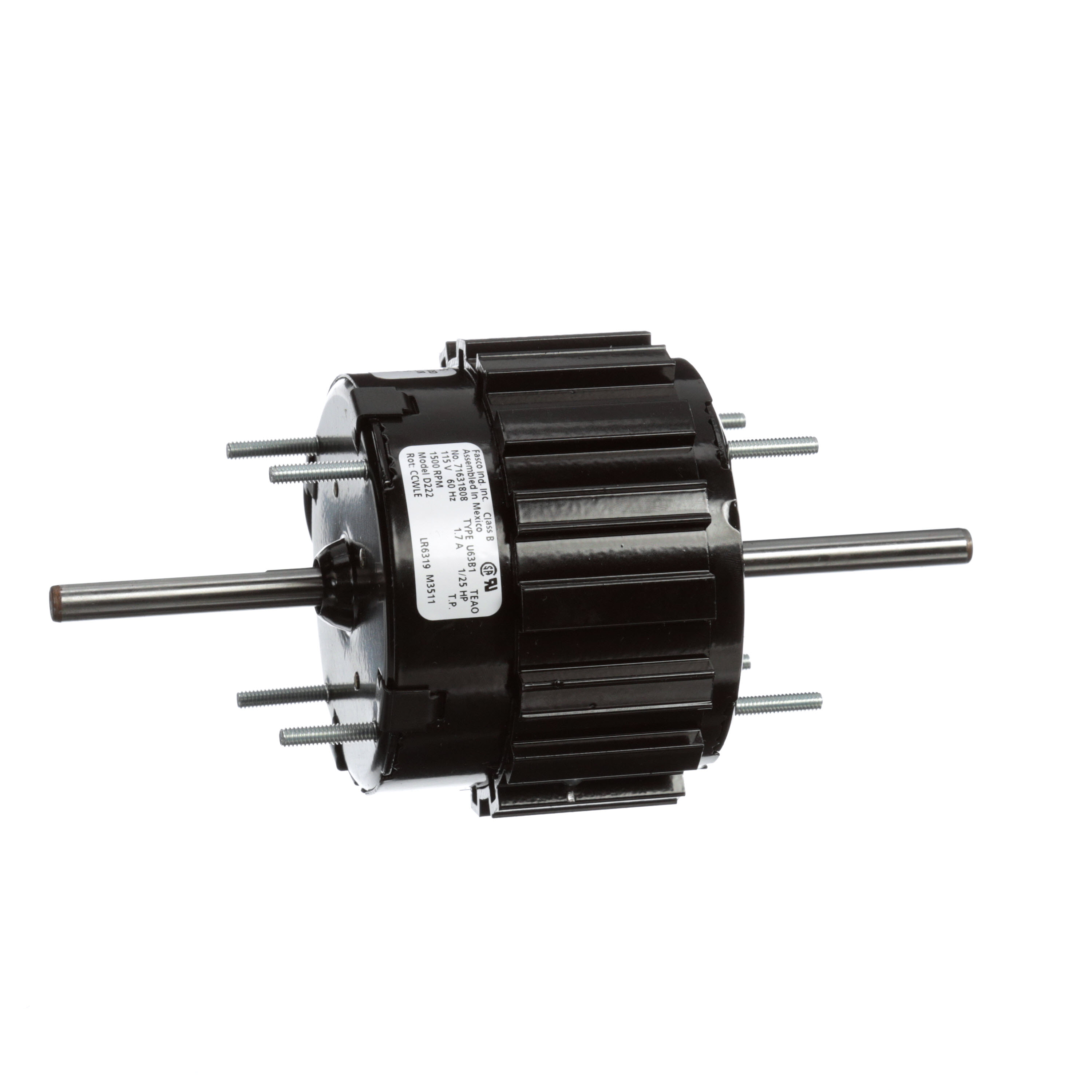

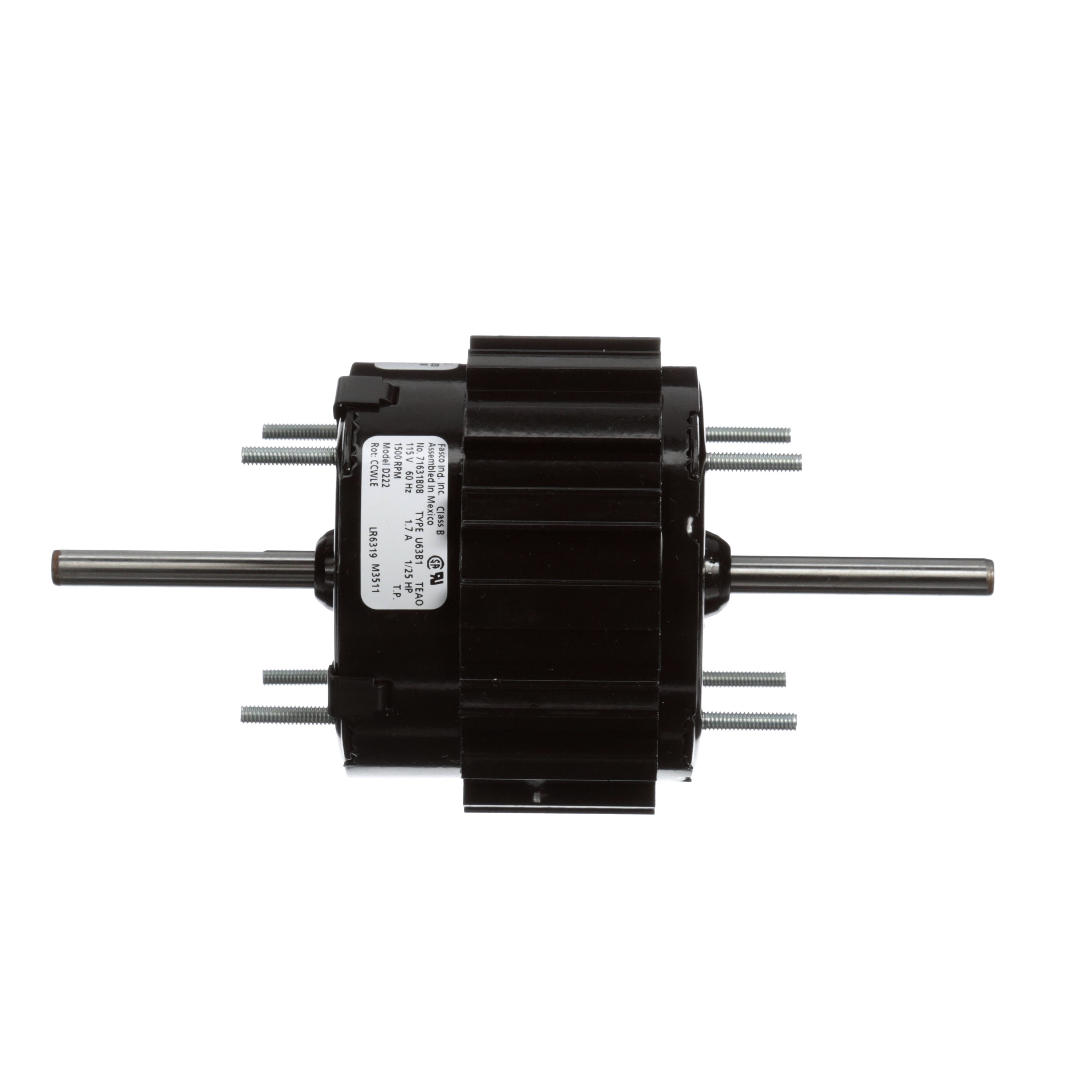

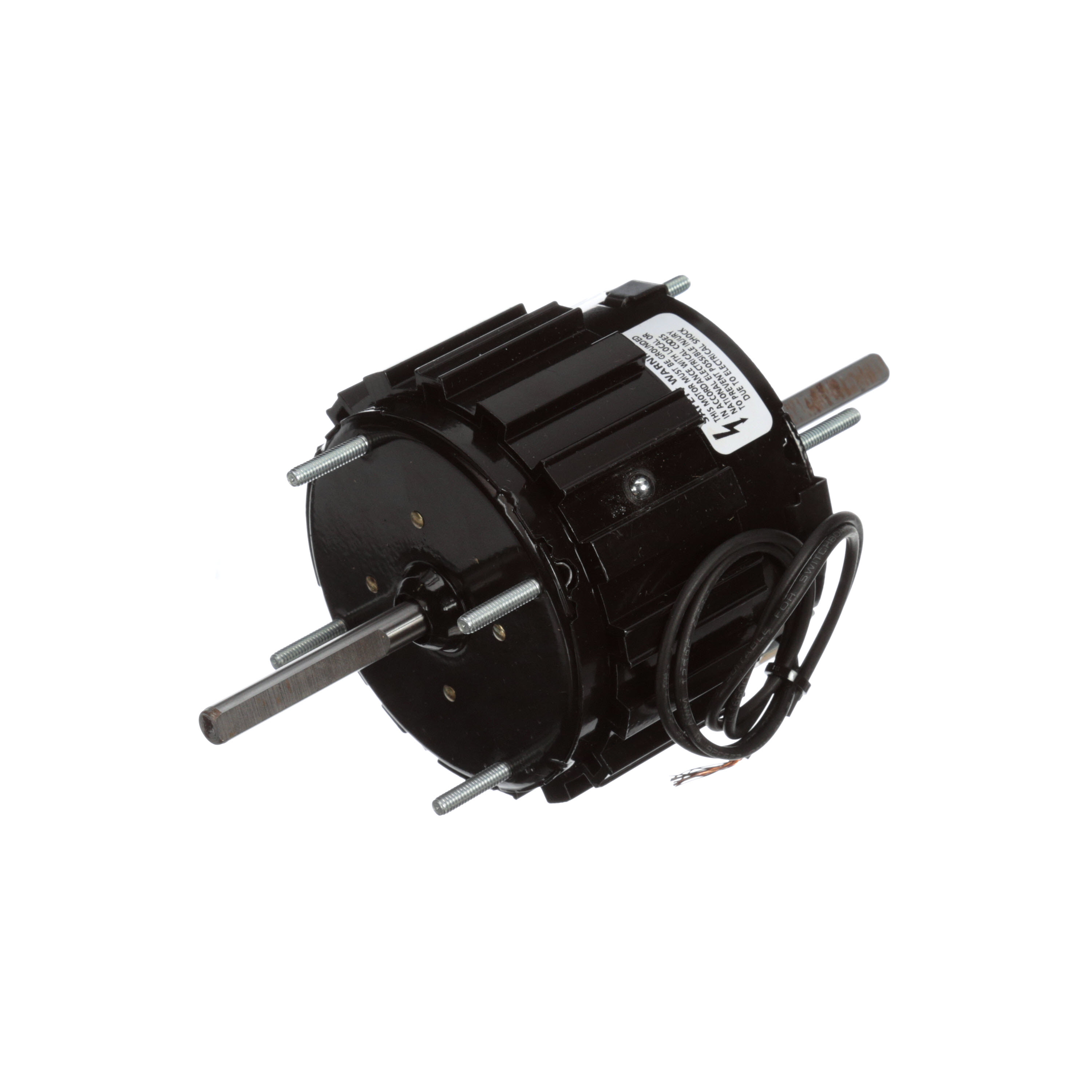

Fasco D222 1/25 HP 1500 RPM 115V Draft Booster Blower Motor

Dreisilker SKU: FA-RBC-D222 | UPC: 815585029106

(No reviews yet) Write a Review
Fasco D222 1/25 HP 1500 RPM 115 Volts Flue Exhaust and Draft Booster Blower Motor
Call 866-698-3316 For Pricing
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco D222 Product Description

The Fasco D222 is a Flue Exhaust Motor. Some of the specifications of the Fasco D222 Flue Exhaust Motor include: Fasco D222 1/25 HP 1500 RPM 115 Volts Flue Exhaust and Draft Booster Blower Motor. The warranty information for the Fasco D222 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D222 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D222 include the following: D222, 1/25 HP, 1500 RPM, 115 Volts, 1/25 HP 1500 RPM 115 Volts, 1/25 1500 115,FA#D222

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D222 Technical specifications

Brand

Fasco

Catalog Number

D222

Product Category

HVAC/R Motors > Draft Inducer Motors

HP

1/25

Volts

115

Frequency

60

Amps

1.70

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1500

Speeds

1

Phase

1

Enclosure Type

Totally Enclosed Air Over

Rotation

Reversible

Mounting Type

Extended Studs

Frame Type

3.3 (in. diameter)

Frame Material

Steel

Shaft Diameter

5/16 (in.)

Shaft Extension

2.25 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

7.53 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D222
