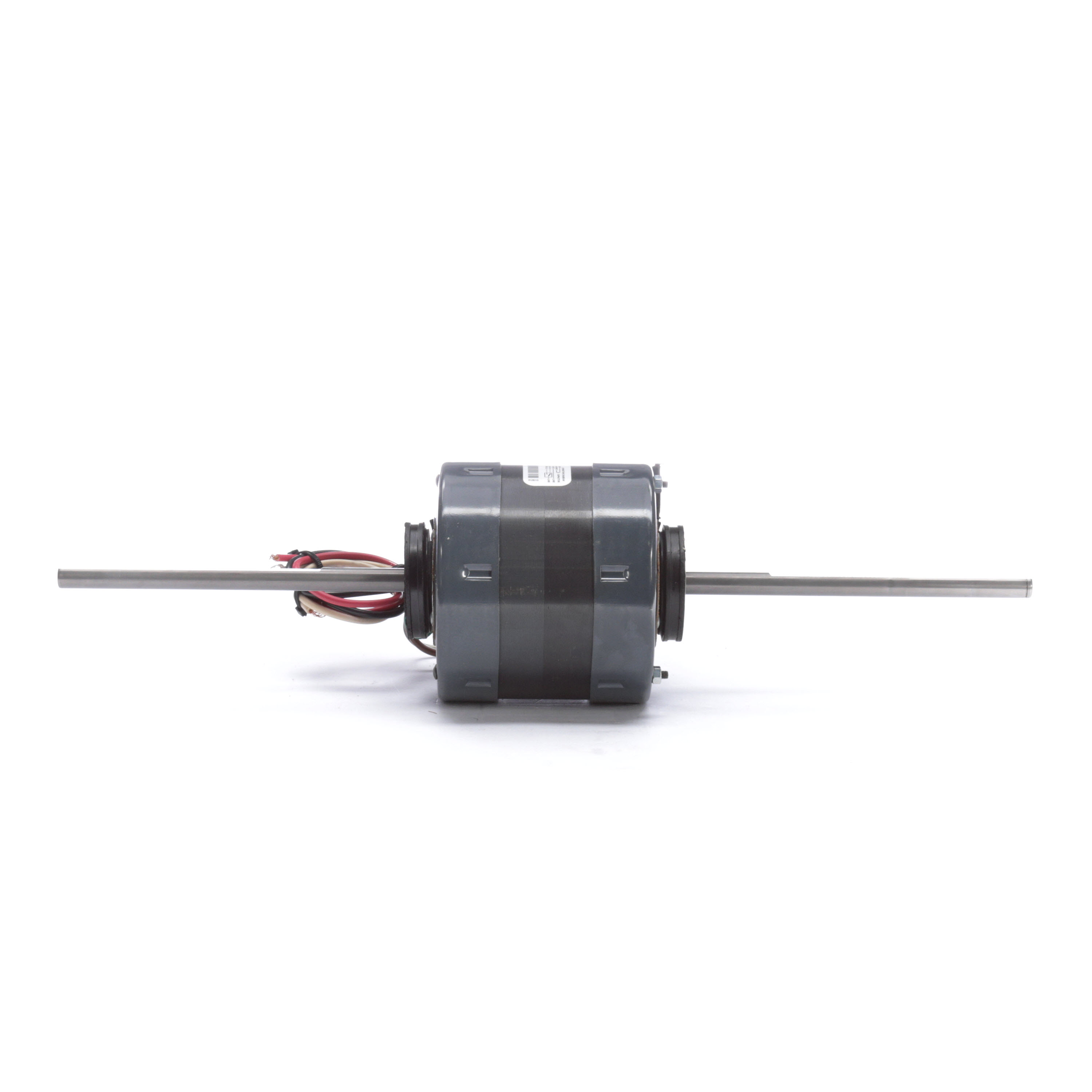

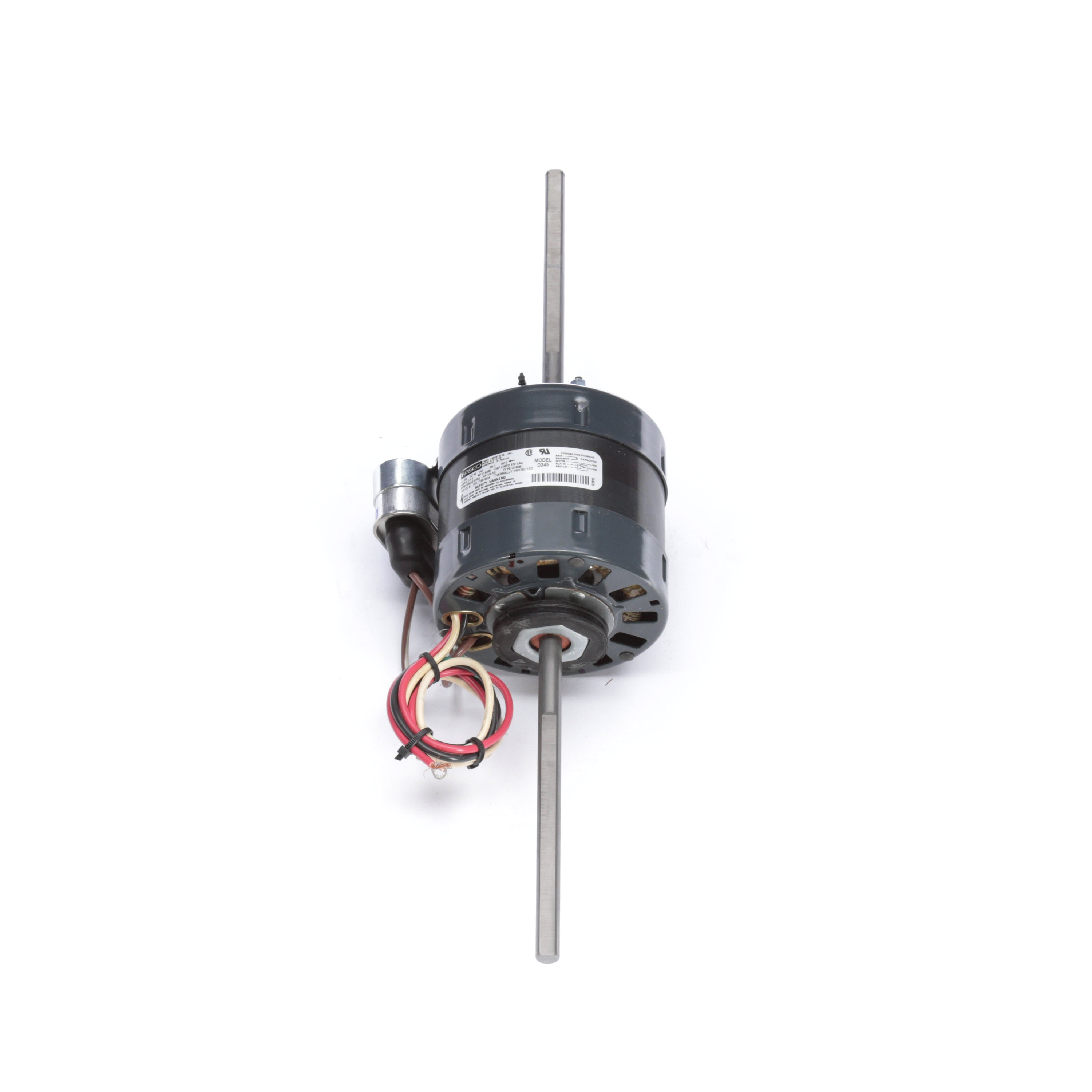

Fasco D245 1/3 HP 1050 RPM 230 Volts Direct Drive Blower Motor

Dreisilker SKU: FA-RBC-D245 | UPC: 815585029236

(No reviews yet) Write a Review
Fasco D245 1/3 HP 1050 RPM 230 Volts Direct Drive Blower Motor
$382.17
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Fasco D245 Product Description

The Fasco D245 is a Direct Drive Blower Motor. Some of the specifications of the Fasco D245 Direct Drive Blower Motor include: Fasco D245 1/3 HP 1050 RPM 230 Volts Direct Drive Blower Motor. The warranty information for the Fasco D245 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D245 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D245 include the following: D245, 1/3 HP, 1050 RPM, 230 Volts, 1/3 HP 1050 RPM 230 Volts, 1/3 1050 230,FA#D245

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D245 Technical specifications

Brand

Fasco

Catalog Number

D245

Product Category

HVAC/R Motors > Fan Coil / Room Air Conditioner Motors

HP

1/3

Volts

230

Frequency

60

Amps

2.7-1.6

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1050

Speeds

2

Phase

1

Enclosure Type

Open Air Over

Rotation

Clockwise Lead End

Mounting Type

Resilient Rings

Frame Type

42

Frame Material

N/A

Shaft Diameter

1/2 (in.)

Shaft Extension

8.00 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

20.60 (in.)

Electrical Type

Permanent Split Capacitor

Duty

Continuous

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D245
