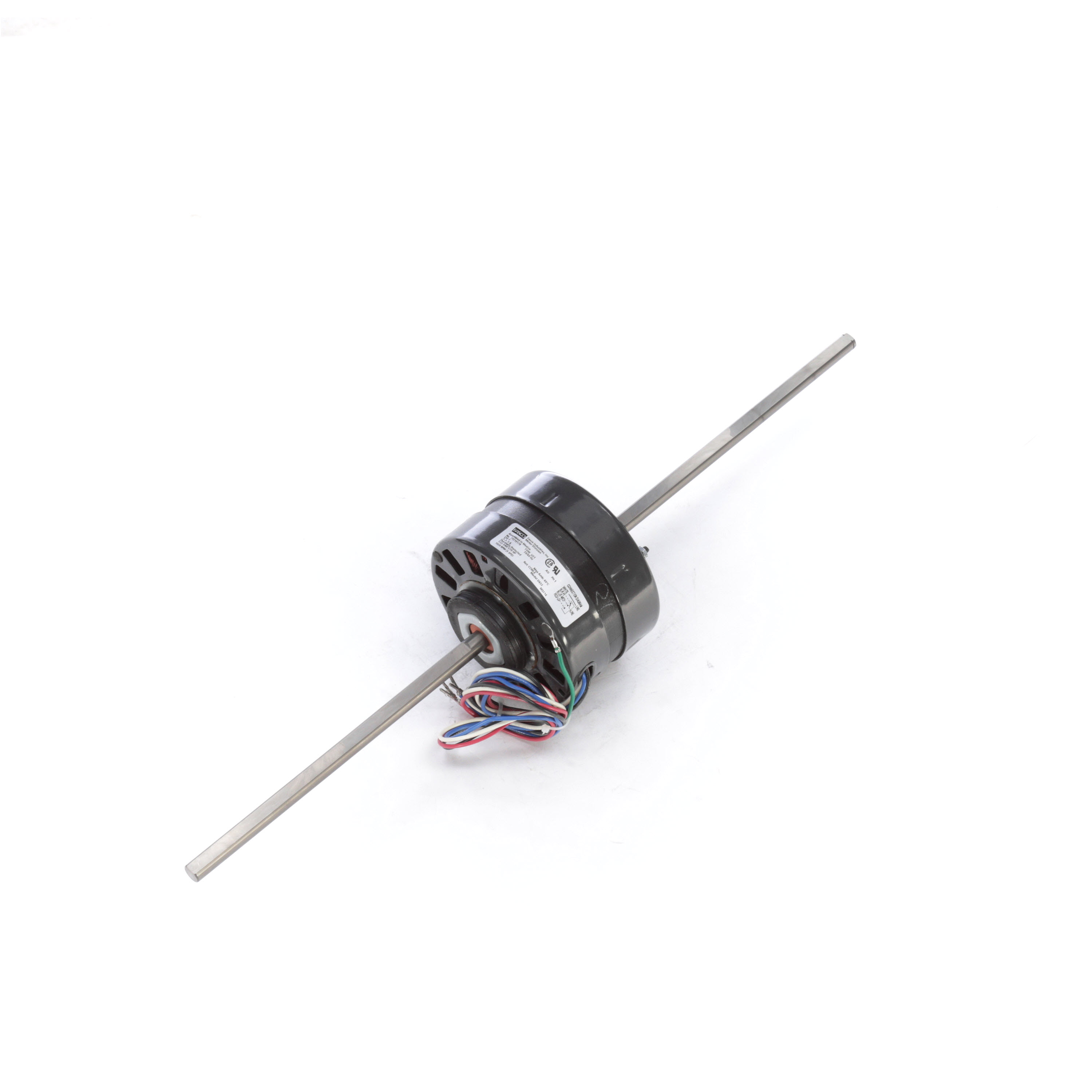

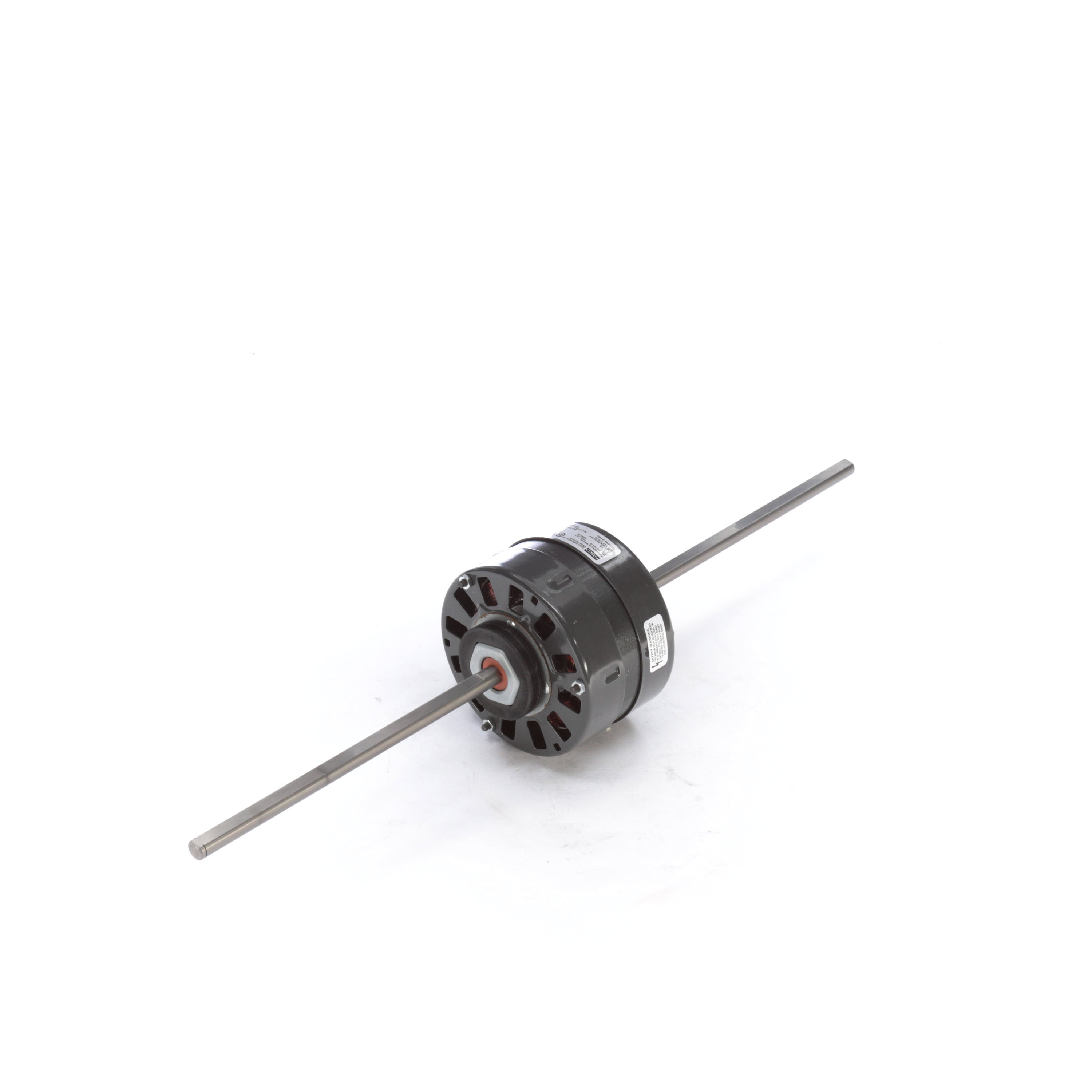

Fasco D655 1/25 HP 1050 RPM 230 Volts Direct Drive Blower Motor

Dreisilker SKU: FA-RBC-D655

(No reviews yet) Write a Review
Fasco D655 1/25 HP 1050 RPM 230 Volts Direct Drive Blower Motor
$149.77
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

Fasco D655 1/25-1/40-1/70 HP 1050 RPM 230 Volts .7-.5-.3 Amps DS Rotation 1/2 Shaft Diameter

Technical specifications

Brand

Fasco

Catalog Number

D655

Product Category

HVAC/R Motors > Fan Coil / Room Air Conditioner Motors

HP

0.04

Volts

230

Frequency

60

Amps

0.7/0.5/0.3

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1050

Number of speeds

3

Number of Phases

1

Enclosure Type

Open Air Over

Rotation

Counterclockwise Lead End

Mounting Type

Resilient Rings

Frame Type

42

Frame Material

Na

Shaft Diameter (In.)

0.500

Shaft Extension (In.)

10.00

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension (In.)

23.26

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

A

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D655#
