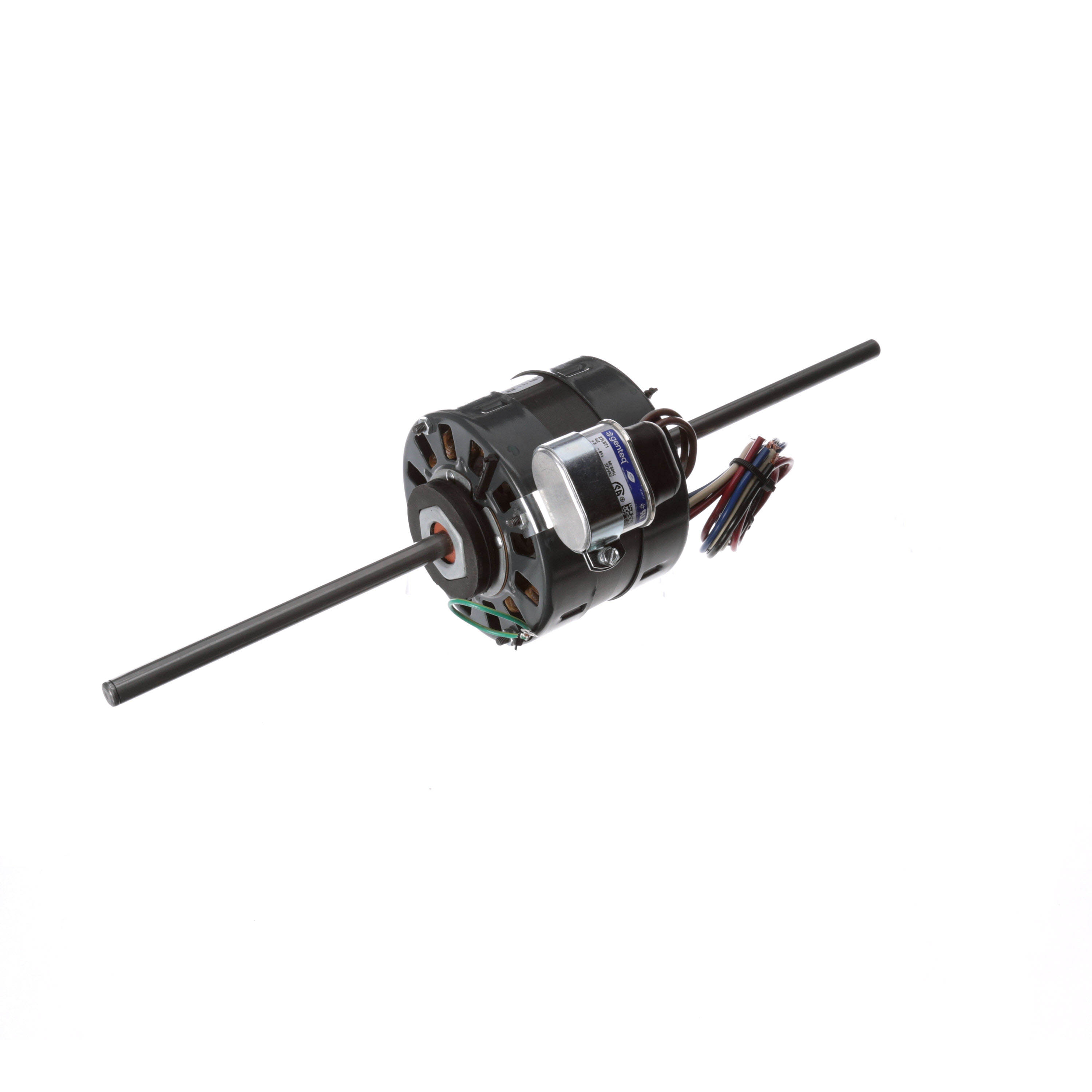

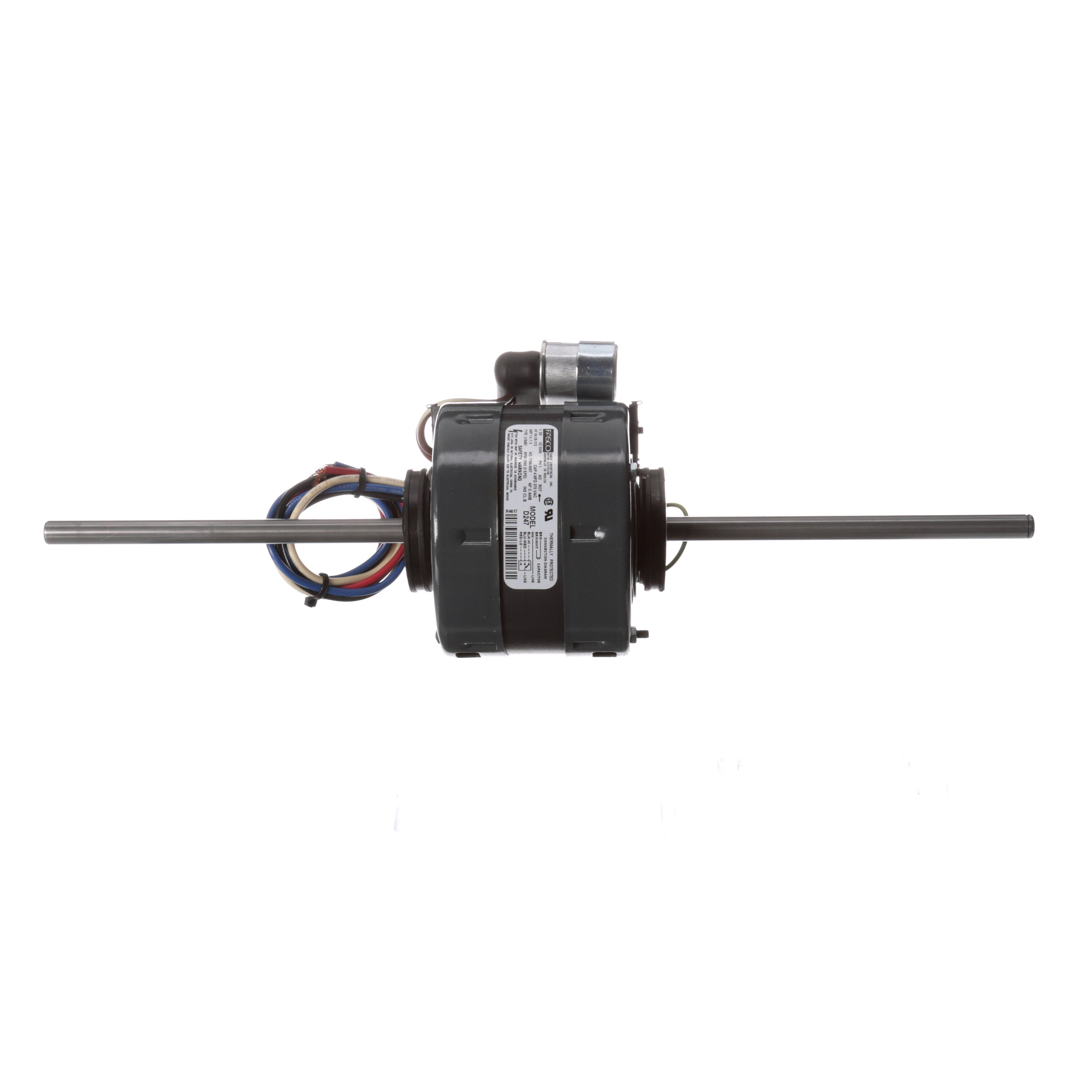

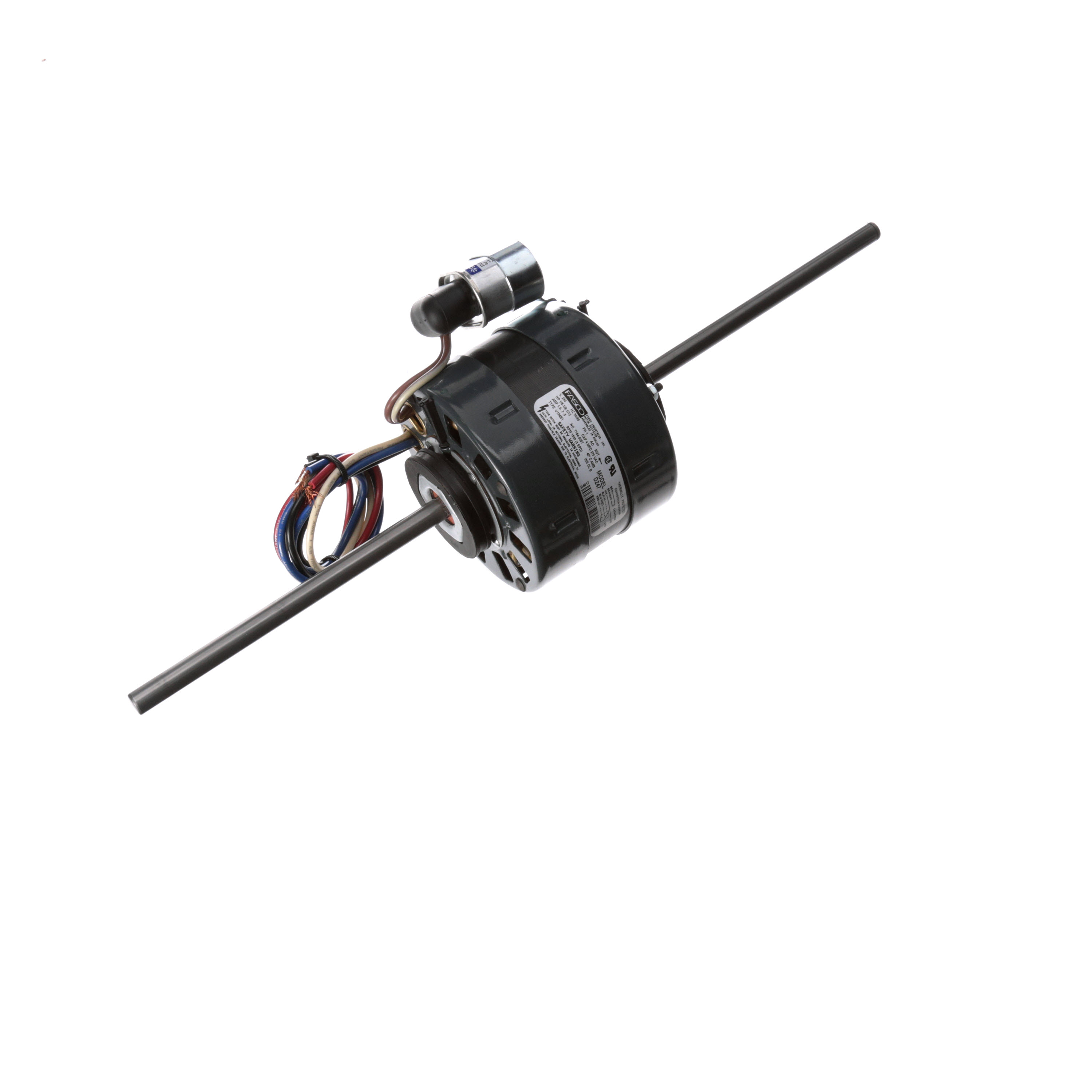

Fasco D247 1/6 HP 1550 RPM 230 Volts Direct Drive Blower Motor

Dreisilker SKU: FA-RBC-D247 | UPC: 8.16E+11

(No reviews yet) Write a Review
Fasco D247 1/6 HP 1550 RPM 230 Volts Direct Drive Blower Motor
$260.45
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Marietta, GA (Atlanta)

1 units in stock

Fasco D247 Product Description

The Fasco D247 is a Direct Drive Blower Motor. Some of the specifications of the Fasco D247 Direct Drive Blower Motor include: Fasco D247 1/6 HP 1550 RPM 230 Volts Direct Drive Blower Motor. The warranty information for the Fasco D247 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D247 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D247 include the following: D247, 1/6 HP, 1550 RPM, 230 Volts, 1/6 HP 1550 RPM 230 Volts, 1/6 1550 230,FA#D247

Fasco D247 Technical specifications

Brand

Fasco

Catalog Number

D247

Product Category

HVAC/R Motors > Fan Coil / Room Air Conditioner Motors

HP

1/6

Volts

230

Frequency

60

Amps

1.0/0.7/0.5

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1550

Speeds

3

Phase

1

Enclosure Type

Open Air Over

Rotation

Clockwise Lead End

Mounting Type

Resilient Rings

Frame Type

42

Frame Material

N/A

Shaft Diameter

1/2 (in.)

Shaft Extension

8.00 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

19.82 (in.)

Electrical Type

Permanent Split Capacitor

Duty

Continuous

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D247
