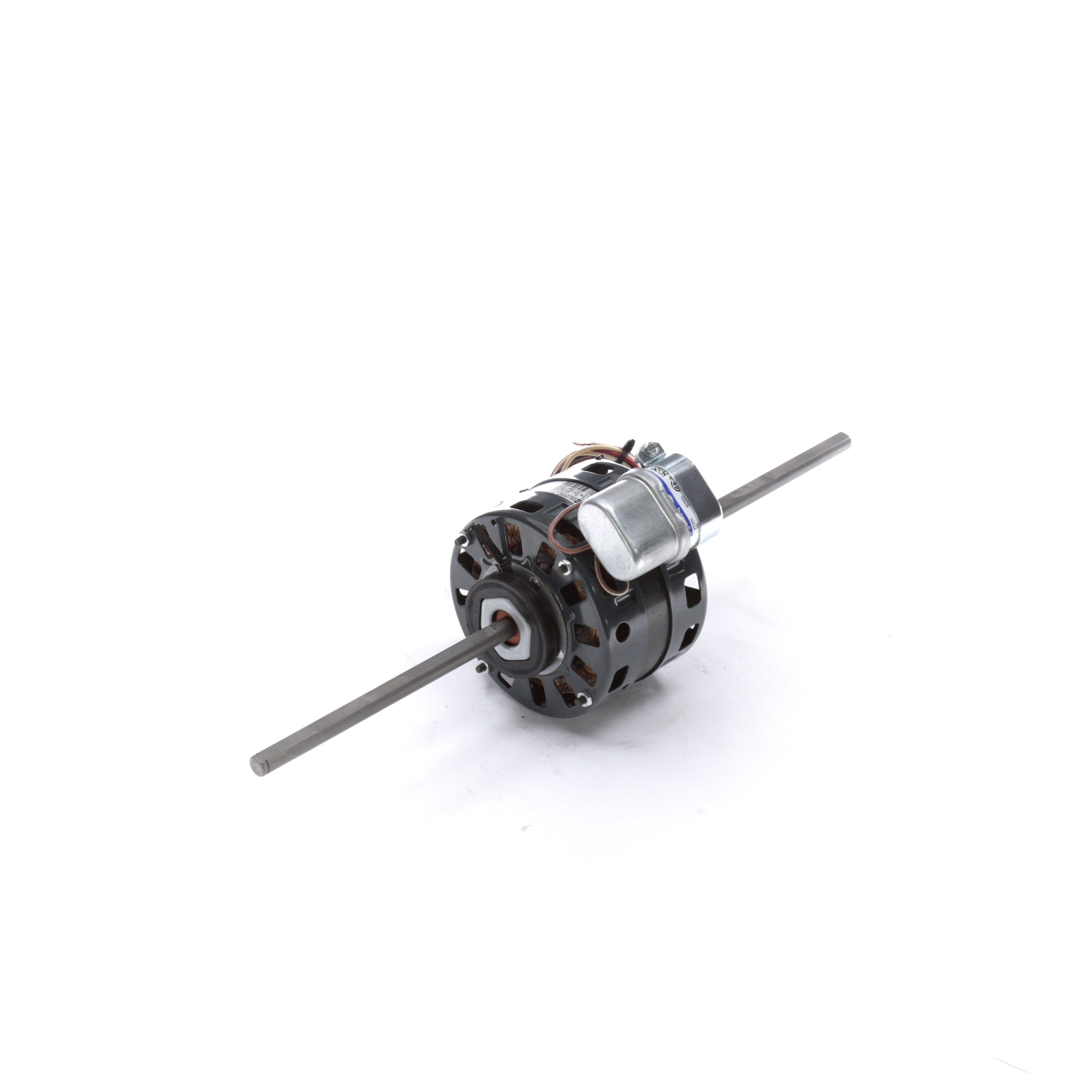

Fasco D258 1/5 HP 1550 RPM 208-230 Volts Direct Drive Blower Motor

Dreisilker SKU: FA-RBC-D258 | UPC: 815585029397

(No reviews yet) Write a Review
$152.91

In stock, ships quickly

Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Marietta, GA (Atlanta)

1 units in stock

Crystal Lake, IL

1 units in stock

Fasco D258 Product Description

The Fasco D258 is a Direct Drive Blower Motor. Some of the specifications of the Fasco D258 Direct Drive Blower Motor include: Fasco D258 1/5 HP 1550 RPM 208-230 Volts Direct Drive Blower Motor. The warranty information for the Fasco D258 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D258 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D258 include the following: D258, 1/5 HP, 1550 RPM, 208-230 Volts, 1/5 HP 1550 RPM 208-230 Volts, 1/5 1550 208-230,FA#D258

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D258 Technical specifications

Brand

Fasco

Catalog Number

D258

Product Category

HVAC/R Motors > Fan Coil / Room Air Conditioner Motors

HP

1/5

Volts

208/230

Frequency

60

Amps

2.8/1.3

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1550

Speeds

2

Phase

1

Enclosure Type

Totally Enclosed

Rotation

Clockwise Lead End

Mounting Type

Resilient Rings

Frame Type

42

Frame Material

N/A

Shaft Diameter

1/2 (in.)

Shaft Extension

8.00 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

19.45 (in.)

Electrical Type

Permanent Split Capacitor

Duty

Continuous

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D258
