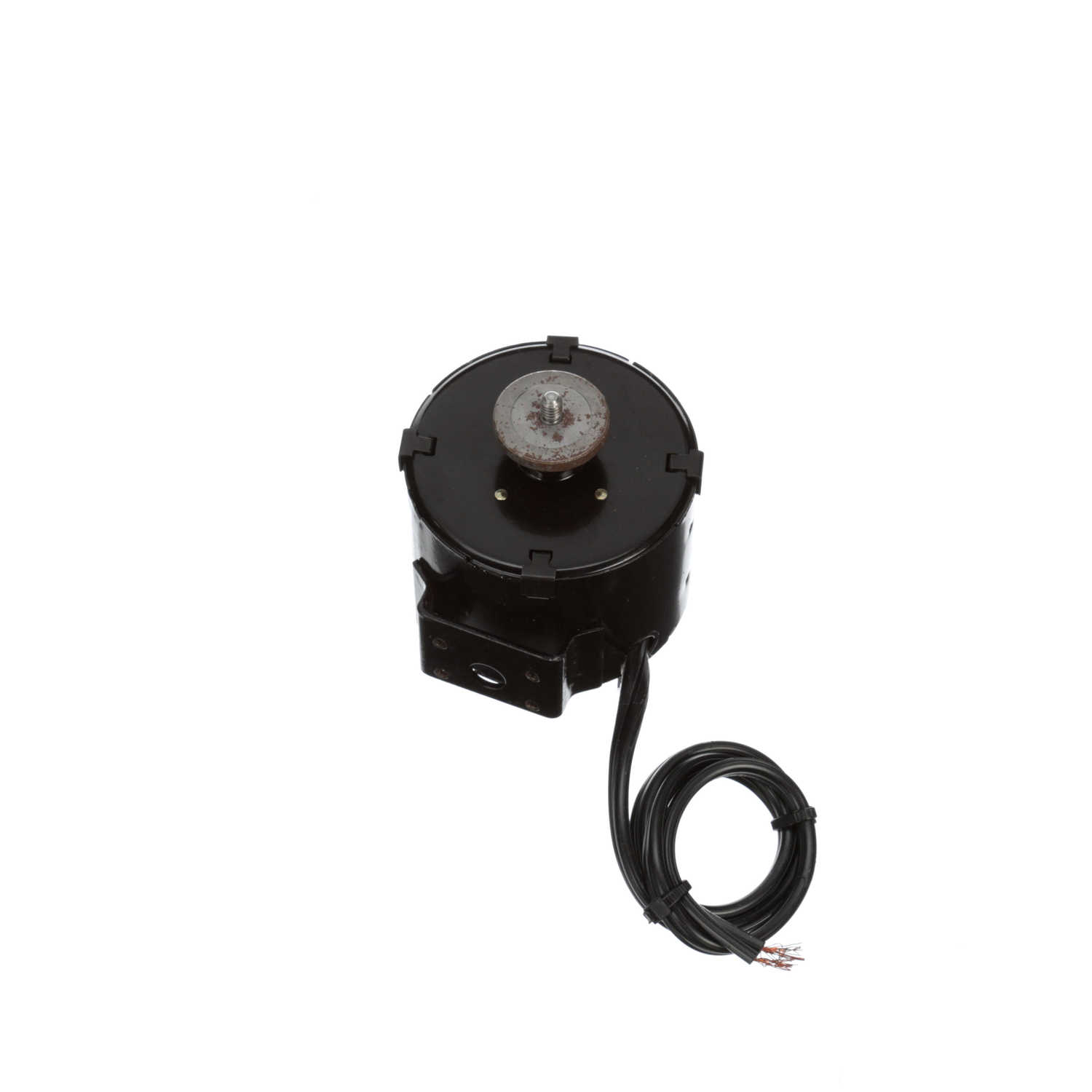

Fasco D437 16 Watt 1550 RPM 115 Volts Refrigeration Fan Motor

Dreisilker SKU: FA-RBC-D437 | UPC: 815585029977

(No reviews yet) Write a Review
$99.50
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco D437 Product Description

The Fasco D437 is a Refrigeration Fan Motor. Some of the specifications of the Fasco D437 Refrigeration Fan Motor include:

Fasco D437 HP 16 Watts RPM 1550 Volts 115 Amps 1.1 Rotation CCW Shaft Diameter HUB

. The warranty information for the Fasco D437 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D437 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D437 include the following: D437, 16 Watt, 1550 RPM, 115 Volts, 16 Watt 1550 RPM 115 Volts, 16 Watt 1550 115,FA#D437

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D437 Technical specifications

Brand

Fasco

Catalog Number

D437

Product Category

HVAC/R Motors > Refrigeration Motors

HP

16 Watts

Volts

115

Frequency

50

Amps

1.30

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1550

Speeds

1

Phase

1

Enclosure Type

Totally Enclosed Air Over

Rotation

Counterclockwise Shaft End

Mounting Type

Extended Studs

Frame Type

3.3 (in. diameter)

Frame Material

Rolled Steel

Shaft Diameter

5/16 (in.)

Shaft Extension

1.12 (in.)

Shaft Type

Threaded

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

-

Electrical Type

Shaded Pole

Duty

Continuous Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D437
