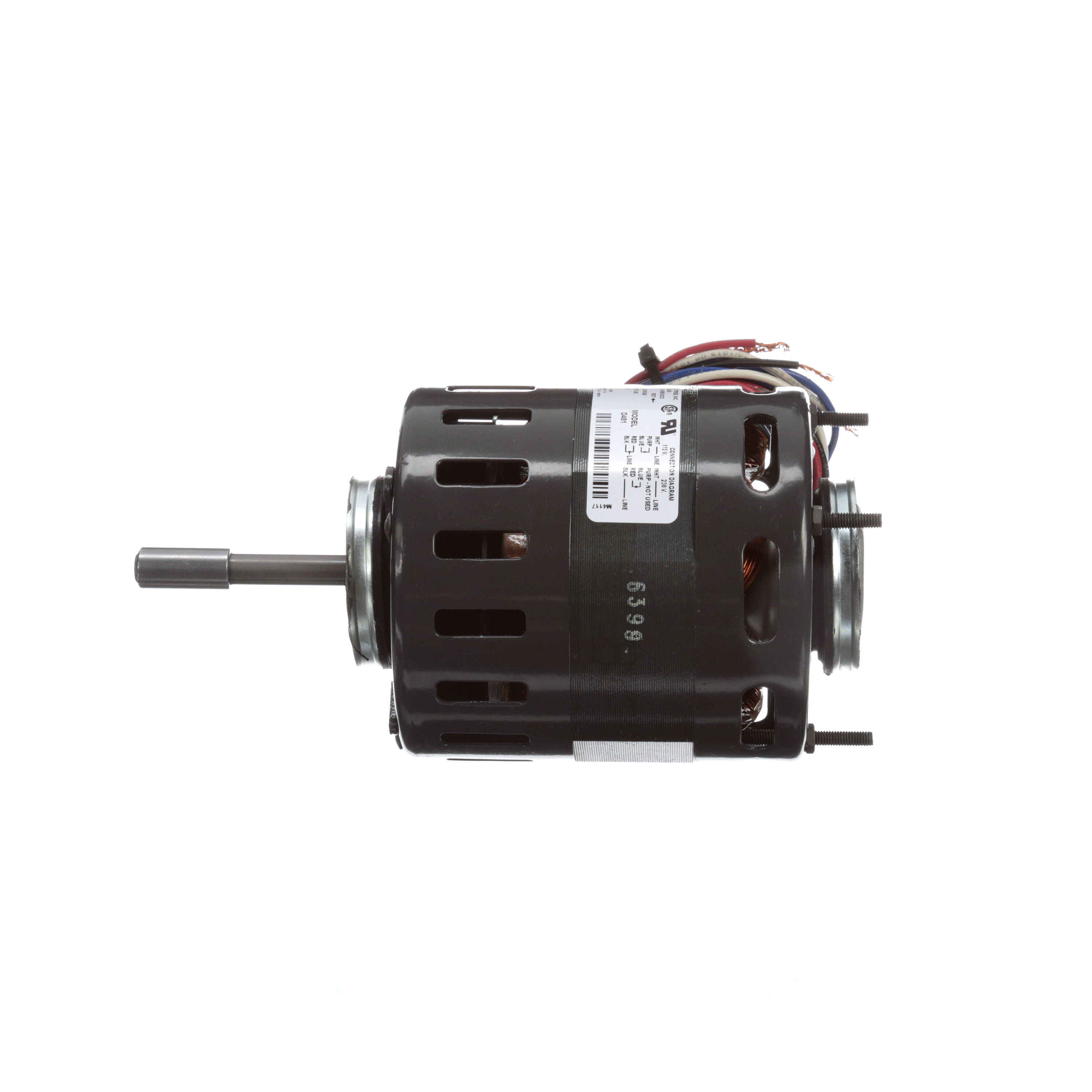

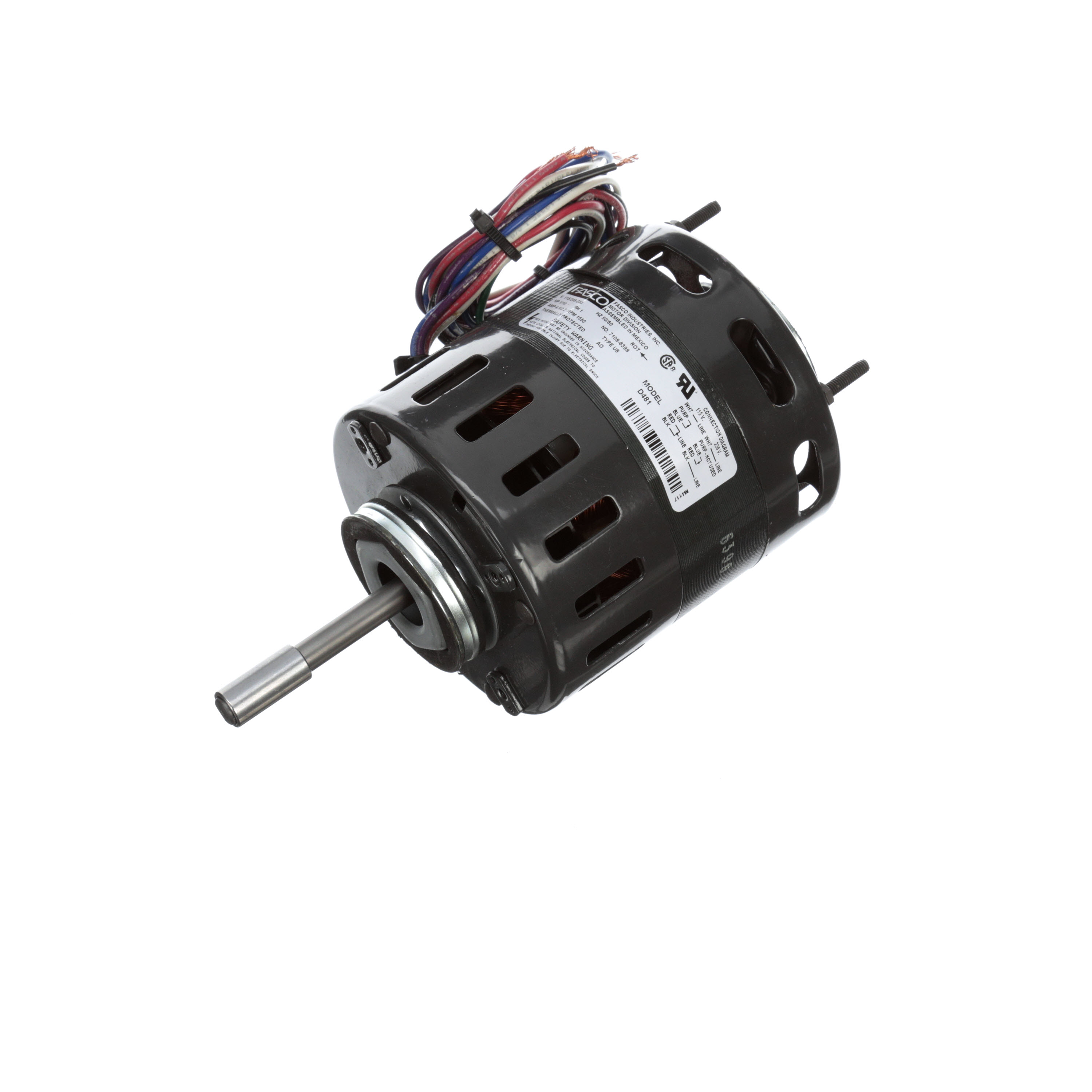

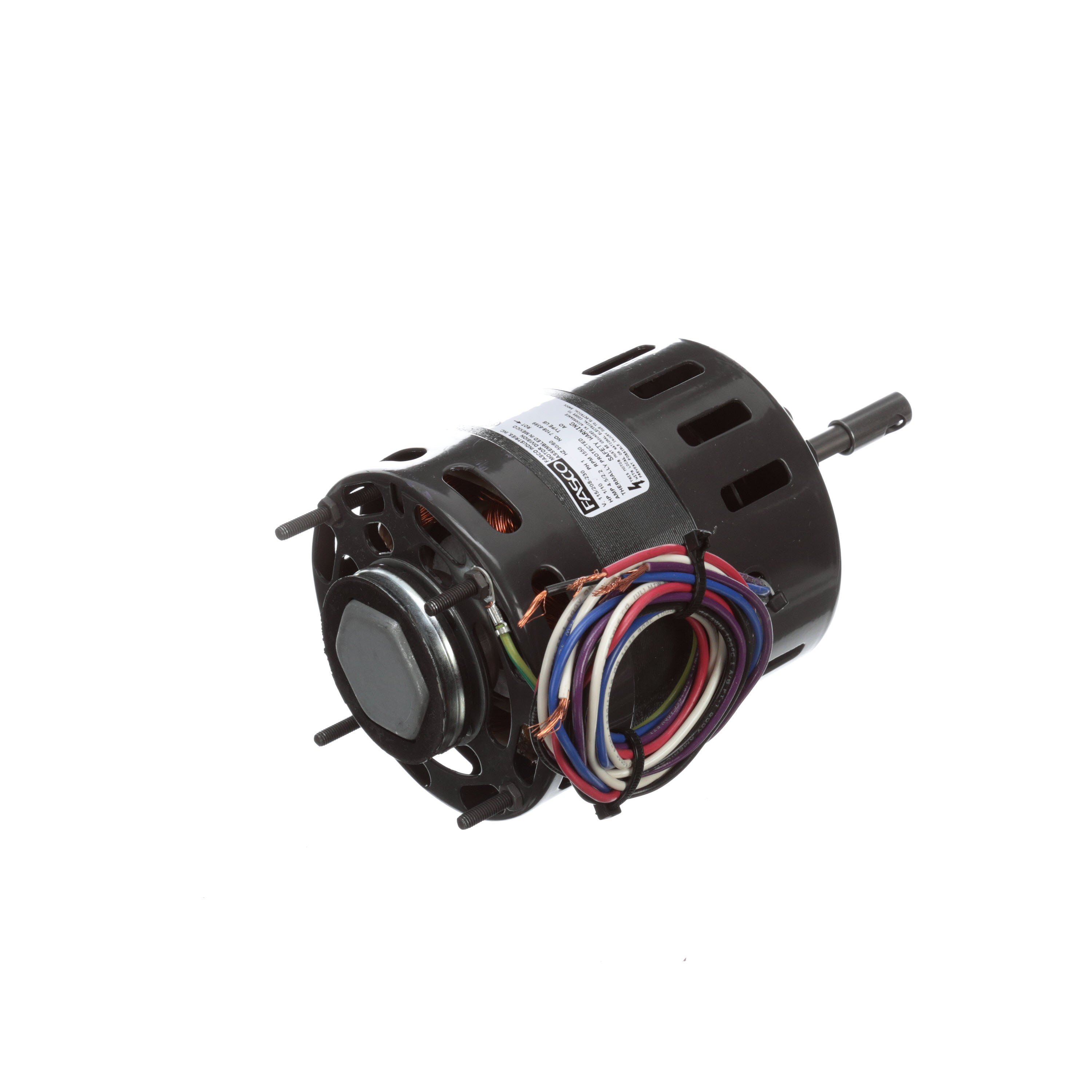

Fasco D481 1/10 HP 1550 RPM 115/208-230 Volts Refrigeration Fan Motor

Dreisilker SKU: FA-RBC-D481 | UPC: 818508020211

(No reviews yet) Write a Review
Fasco D481 1/10 HP 1550 RPM 115/208-230 Volts Refrigeration Fan Motor
$305.35
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco D481 Product Description

The Fasco D481 is a Refrigeration Fan Motor. Some of the specifications of the Fasco D481 Refrigeration Fan Motor include: Fasco D481 1/10 HP 1550 RPM 115/208-230 Volts Refrigeration Fan Motor. The warranty information for the Fasco D481 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D481 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D481 include the following: D481, 1/10 HP, 1550 RPM, 115/208-230 Volts, 1/10 HP 1550 RPM 115/208-230 Volts, 1/10 1550 115/208-230,FA#D481

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D481 Technical specifications

Brand

Fasco

Catalog Number

D481

Product Category

HVAC/R Motors > Refrigeration Motors

HP

1/10

Volts

115/208-230

Frequency

60

Amps

4.5/2.2

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1550

Speeds

1

Phase

1

Enclosure Type

Open Air Over

Rotation

Counterclockwise Shaft End

Mounting Type

Resilient Ring - Extended Studs

Frame Type

4.4 (in. diameter)

Frame Material

Na

Shaft Diameter

3/8 (in.)

Shaft Extension

3.15 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

8.50 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

A

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D481
