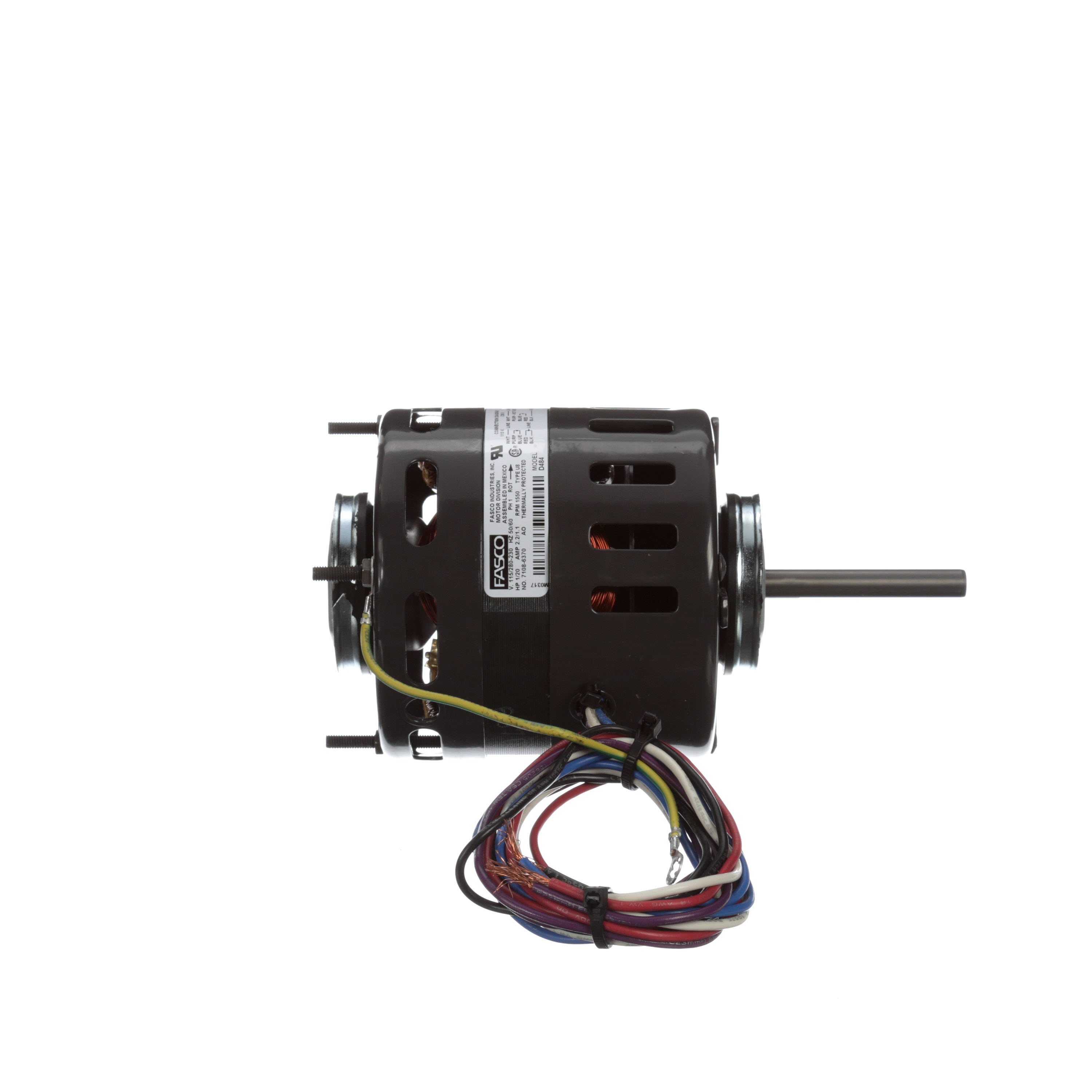

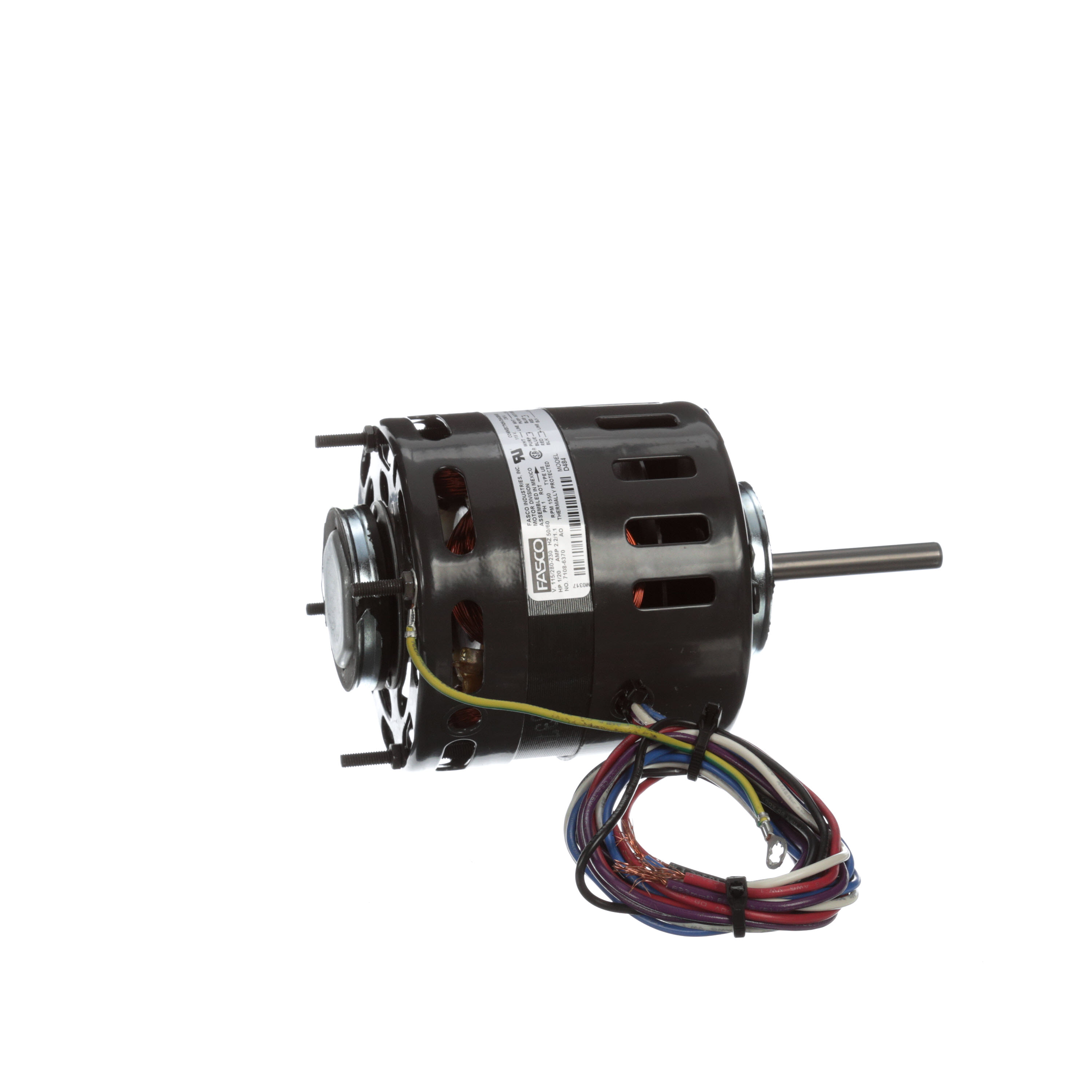

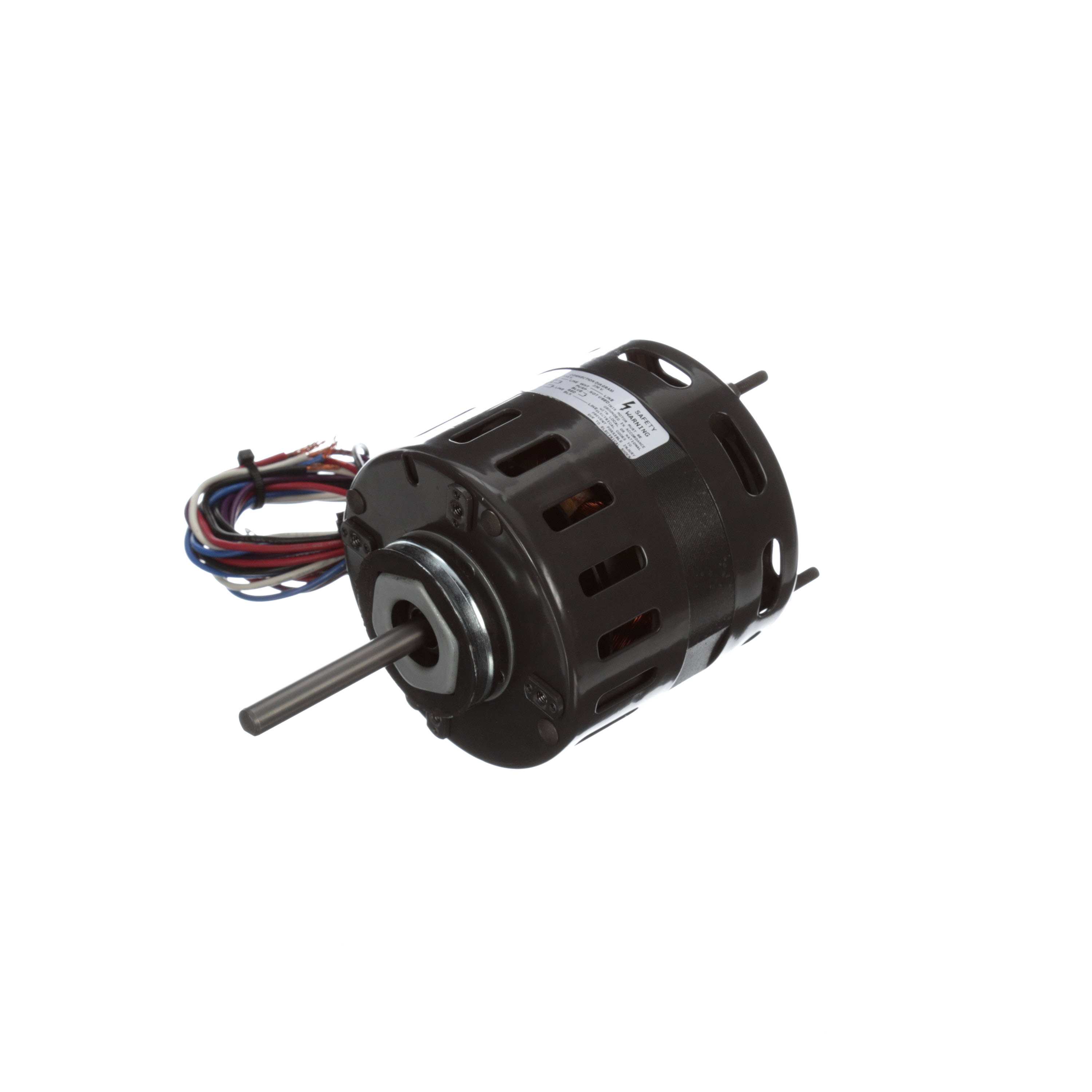

Fasco D484 1/20 HP 1550 RPM 115/208-230 Volts Refrigeration Fan Motor

Fasco

Dreisilker SKU: FA-RBC-D484 | UPC: 8.19E+11

(No reviews yet) Write a Review

Fasco D484 Product Description

The Fasco D484 is a Refrigeration Fan Motor. Some of the specifications of the Fasco D484 Refrigeration Fan Motor include: Fasco D484 1/20 HP 1550 RPM 115/208-230 Volts Refrigeration Fan Motor. The warranty information for the Fasco D484 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D484 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D484 include the following: D484, 1/20 HP, 1550 RPM, 115/208-230 Volts, 1/20 HP 1550 RPM 115/208-230 Volts, 1/20 1550 115/208-230,FA#D484

Fasco D484 Technical specifications

Brand

Fasco

Catalog Number

D484

Product Category

HVAC/R Motors > Refrigeration Motors

1/20

Volts

115/208-230

Frequency

Amps

2.2/1.1

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1550

Speeds

Phase

Enclosure Type

Open Air Over

Rotation

Clockwise Shaft End

Mounting Type

Resilient Ring - Extended Studs

Frame Type

4.4 (in. diameter)

Frame Material

Shaft Diameter

3/8 (in.)

Shaft Extension

3.15 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

7.94 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

Service Factor

Type of Overload Protector

Thermally Protected

Insulation Class

Max Ambient

40°C

Recognized

CSA

IP Code

KVA Code

DEM Reference

FA#D484
