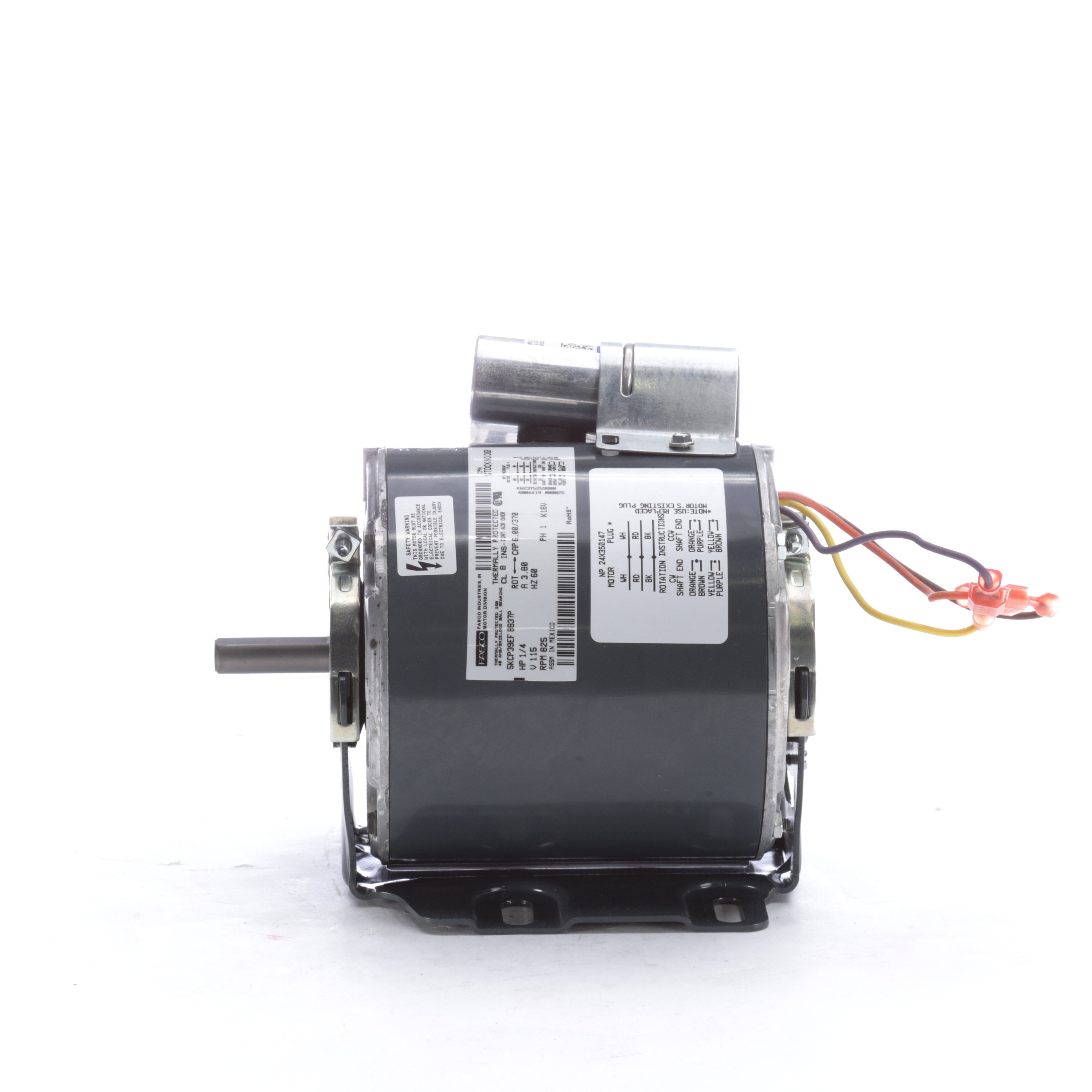

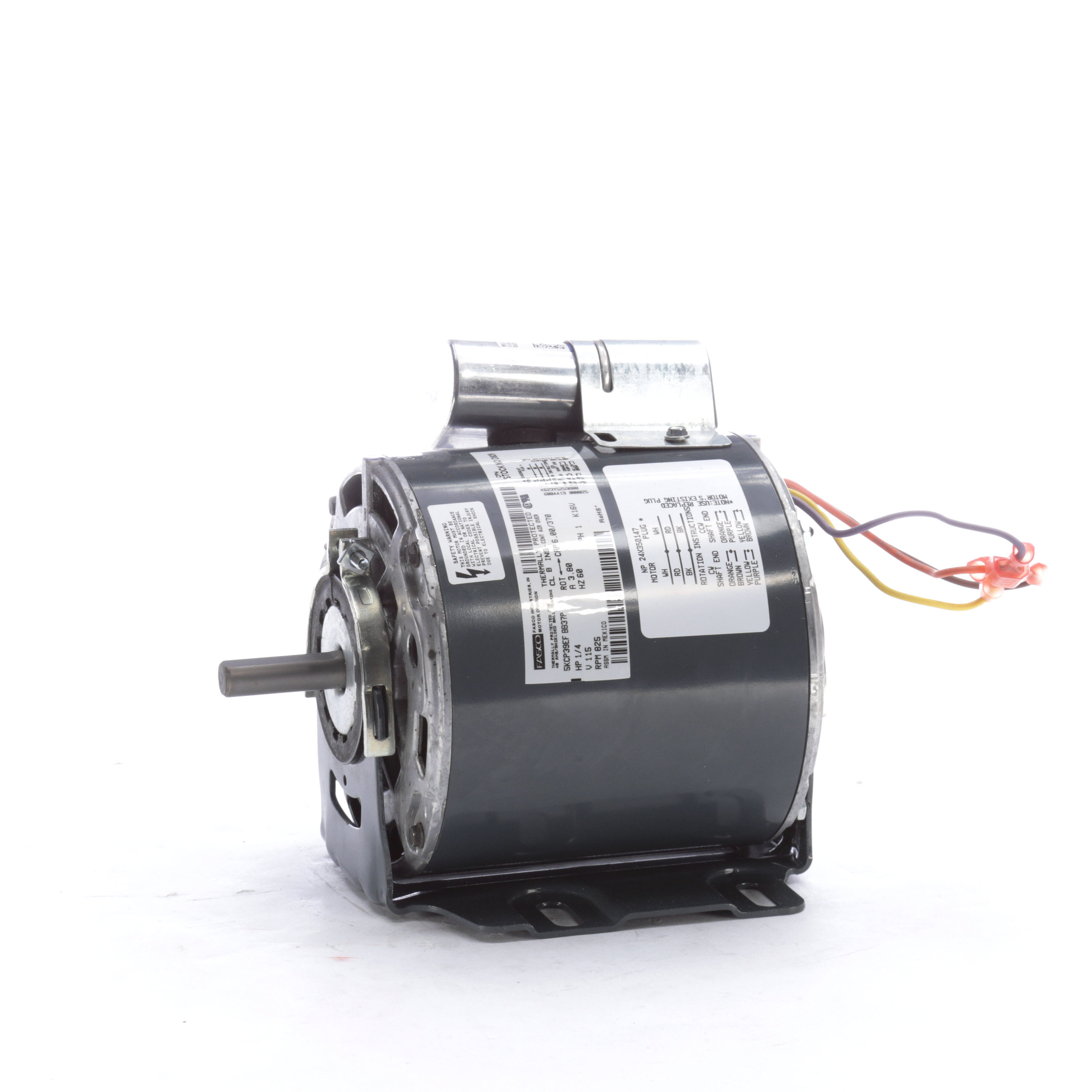

Fasco D829 1/4 HP 825 RPM 115 Volts OEM Direct Replacement Motor

Dreisilker SKU: FA-RBC-D829

(No reviews yet) Write a Review
Fasco D829 1/4 HP 825 RPM 115 Volts OEM Direct Replacement Motor
$323.88
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

HP 1/4 Volts 115 RPM 825 Speeds 1 Amps 3.8 Rotation REV

Technical specifications

Brand

Fasco

Catalog Number

D829

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

0.25

Volts

115

Frequency

60

Amps

5.04

RPM (Number of Poles)

8 (721 RPM to 900 RPM)

RPM (Nameplate)

825

Number of speeds

1

Number of Phases

1

Enclosure Type

Open Air Over

Rotation

Reversible

Mounting Type

Resilient Base

Frame Type

48

Frame Material

Rolled Steel

Shaft Diameter (In.)

0.500

Shaft Extension (In.)

1.50

Shaft Type

Flat

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension (In.)

7.89

Electrical Type

Permanent Split Capacitor

Duty

Continuous Air Over

Motor Orientation

Hor

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D829
