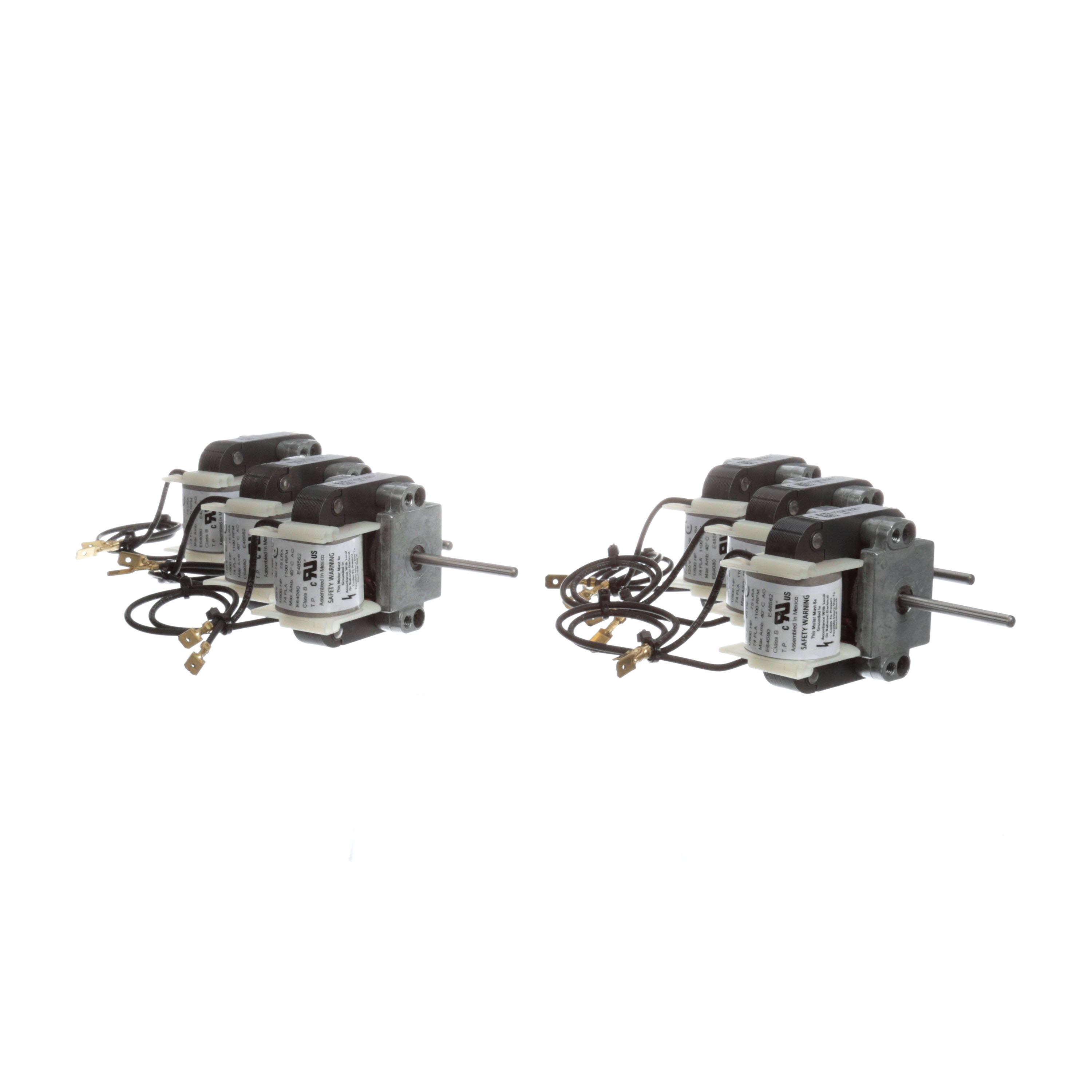

Fasco K114 1/500 HP 1100 RPM 120 Volts C-Frame Motor

Dreisilker SKU: FA-RBC-K114 | UPC: 818508021560

(No reviews yet) Write a Review
Fasco K114 1/500 HP 1100 RPM 120 Volts C-Frame Motor
$67.64
Product Availability
Ships same day if purchased before 2:00 pm CST (weekdays).
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco K114 Product Description

The Fasco K114 is a C-Frame Motor. Some of the specifications of the Fasco K114 C-Frame Motor include: Fasco K114 1/500 HP 1100 RPM 120 Volts C-Frame Motor. The warranty information for the Fasco K114 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco K114 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco K114 include the following: K114, 1/500 HP, 1100 RPM, 120 Volts, 1/500 HP 1100 RPM 120 Volts, 1/500 1100 120,FA#K114

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco K114 Technical specifications

Brand

Fasco

Catalog Number

K114

Product Category

HVAC/R Motors > C-Frame / Skeleton Motors

HP

1/500

Volts

120

Frequency

60

Amps

.74

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1100

Speeds

1

Phase

1

Enclosure Type

Open

Rotation

Clockwise

Mounting Type

Extended Studs

Frame Type

C-Frame

Frame Material

-

Shaft Diameter

0.181 (in.)

Shaft Extension

1.75 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

3.33 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

N

IP Code

-

KVA Code

-

DEM Reference

FA#K114
