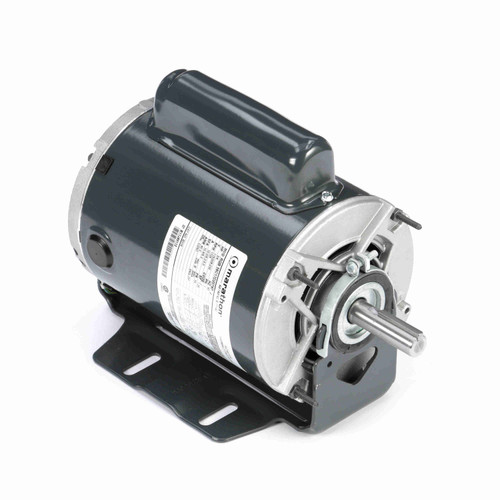

Marathon B319 3/4 HP 1800 RPM 115/208-230 Volts General Purpose Motor

Dreisilker SKU: MA-RBC-B319

(No reviews yet) Write a Review
$296.55
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Product Description

Marathon B319 3/4 HP 1800 RPM 115/208-230 Volts 1 Phase 56 Frame ODP

Technical specifications

Brand

Marathon

Catalog Number

B319

Product Category

General Purpose NEMA General Purpose Single Phase Motors > Single Phase ODP Motors

HP

0.75

Volts

115/208-230

Frequency

60

Amps

10.0/5.2-5.0

RPM (Number of Poles)

4 (1201 RPM to 1800 RPM)

RPM (Nameplate)

1725

Number of speeds

1

Number of Phases

1

Enclosure Type

Drip Proof

Rotation

Selective Counterclockwise

Mounting Type

Resilient Base - Extended Studs

Frame Type

56

Frame Material

Rolled Steel

Shaft Diameter (In.)

0.625

Shaft Extension (In.)

1.87

Shaft Type

T

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension (In.)

10.72

Electrical Type

Capacitor Start Induction Run

Duty

Continuous

Motor Orientation

Horizontal

Service Factor

1.25

Type of Overload Protector

Automatic

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

Y

CSA

Y

IP Code

22

KVA Code

J

DEM Reference

MA#B319
