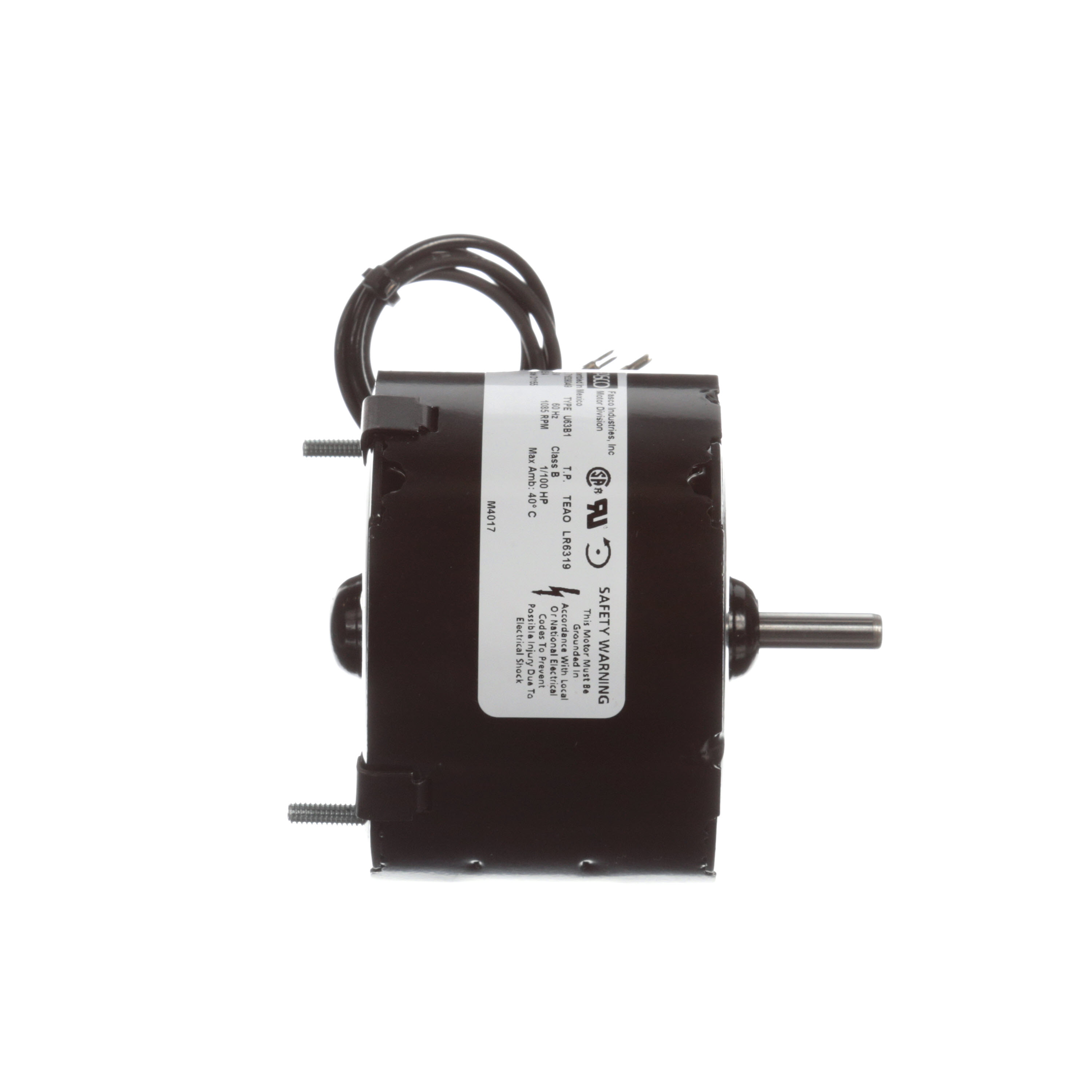

Fasco D1155 1/100 HP 1085 RPM 115 Volts OEM Direct Replacement Motor

Dreisilker SKU: FA-RBC-D1155 | UPC: 818508022161

(No reviews yet) Write a Review
Fasco D1155 1/100 HP 1085 RPM 115 Volts OEM Direct Replacement Motor
$96.67
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco D1155 Product Description

The Fasco D1155 is a Thermado OEM Direct Replacement Motor. Some of the specifications of the Fasco D1155 Thermado OEM Direct Replacement Motor include: Fasco D1155 1/100 HP 1085 RPM 115 Volts OEM Direct Replacement Motor. The warranty information for the Fasco D1155 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D1155 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D1155 include the following: D1155, 1/100 HP, 1085 RPM, 115 Volts, 1/100 HP 1085 RPM 115 Volts, 1/100 1085 115,FA#D1155

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D1155 Technical specifications

Brand

Fasco

Catalog Number

D1155

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

1/100

Volts

115

Frequency

60

Amps

0.50

RPM (Number of Poles)

6 (901 RPM to 1200 RPM)

RPM (Nameplate)

1085

Speeds

1

Phase

1

Enclosure Type

Totally Enclosed Air Over

Rotation

Counterclockwise Shaft End

Mounting Type

Extended Studs

Frame Type

3.3 (in. diameter)

Frame Material

Steel

Shaft Diameter

1/4 (in.)

Shaft Extension

1 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

3.63 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D1155
