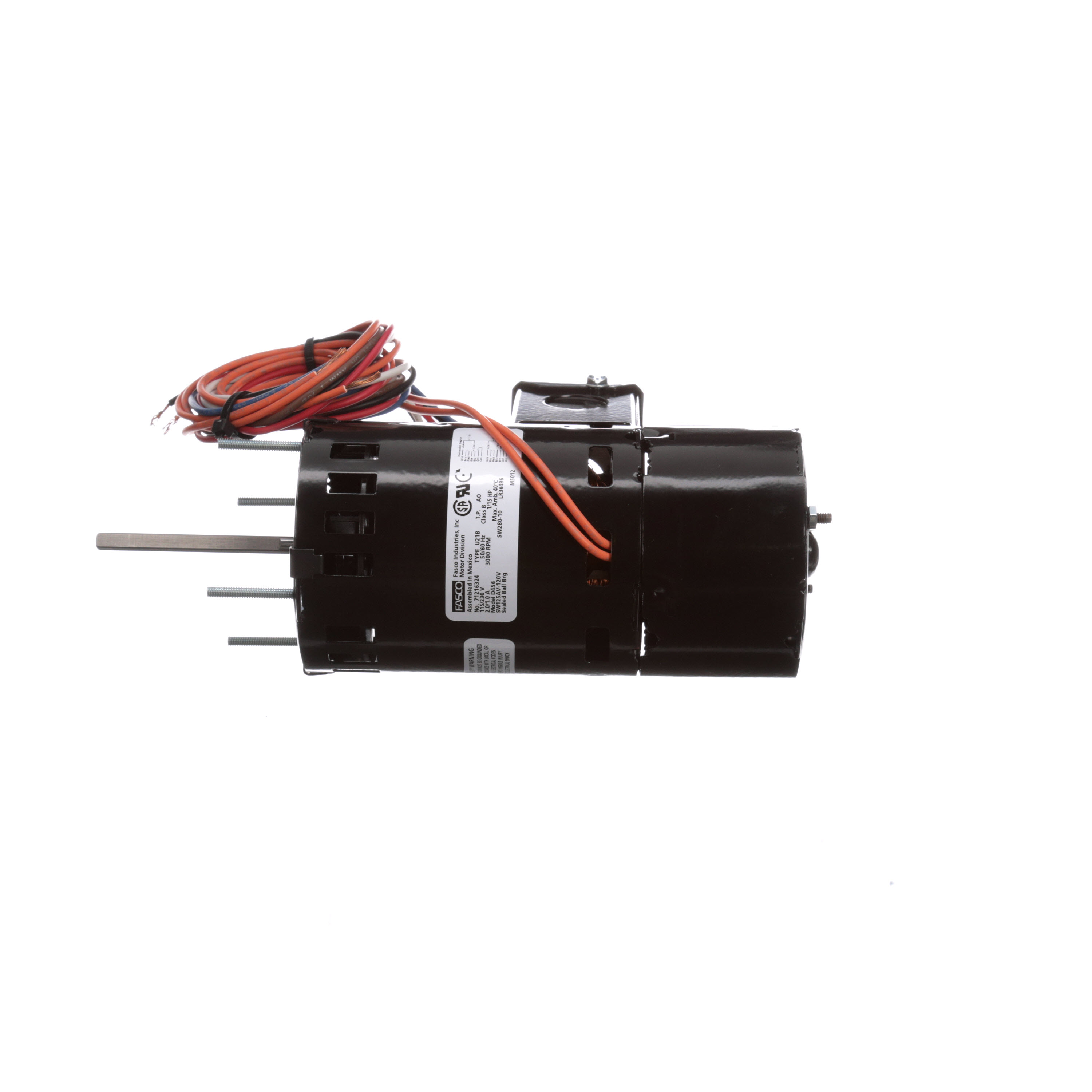

Fasco D456 1/15 HP 3000 RPM 115/230V Draft Booster Blower Motor

Dreisilker SKU: FA-RBC-D456 | UPC: 818508020013

(No reviews yet) Write a Review
$216.20
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Inventory and Shipping Information

Glen Ellyn, IL

2 units in stock

Chicago, IL (Grand Ave.)

2 units in stock

Marietta, GA (Atlanta)

1 units in stock

Alsip, IL

2 units in stock

Elk Grove Village, IL

1 units in stock

Crystal Lake, IL

2 units in stock

Fasco D456 Product Description

The Fasco D456 is a Flue Exhaust Motor. Some of the specifications of the Fasco D456 Flue Exhaust Motor include: Fasco D456 1/15 HP 3000 RPM 115/230 Volts Flue Exhaust & Draft Booster Blower Motor. The warranty information for the Fasco D456 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D456 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D456 include the following: D456, 1/15 HP, 3000 RPM, 115/230 Volts, 1RPM 115/230 Volts, 1/15 3000 115/230/15 HP 3000 , 570, 7121-3651, 71213651, 7121-6324, 71216324, 82520, AB1S026, D456, F33EWT-2250, F33EWT2250, HC24AO701, HC24AU600, HC24AU600B, HC24AU701, JA1N024,FA#D456

THE DREISILKER PROCESS


Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D456 Technical specifications

Brand

Fasco

Catalog Number

D456

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

1/15

Volts

115/230

Frequency

60

Amps

2.0/1.0

RPM (Number of Poles)

2 (1801 RPM to 3600 RPM)

RPM (Nameplate)

3000

Speeds

1

Phase

1

Enclosure Type

Open Air Over

Rotation

Clockwise Shaft End

Mounting Type

Extended Studs

Frame Type

3.3 (in. diameter)

Frame Material

Steel

Shaft Diameter

1/4 (in.)

Shaft Extension

2.5 (in.)

Shaft Type

Flat

DE Bearing Type

Sleeve

ODE Bearing Type

Sleeve

C-Dimension

9.42 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D456
