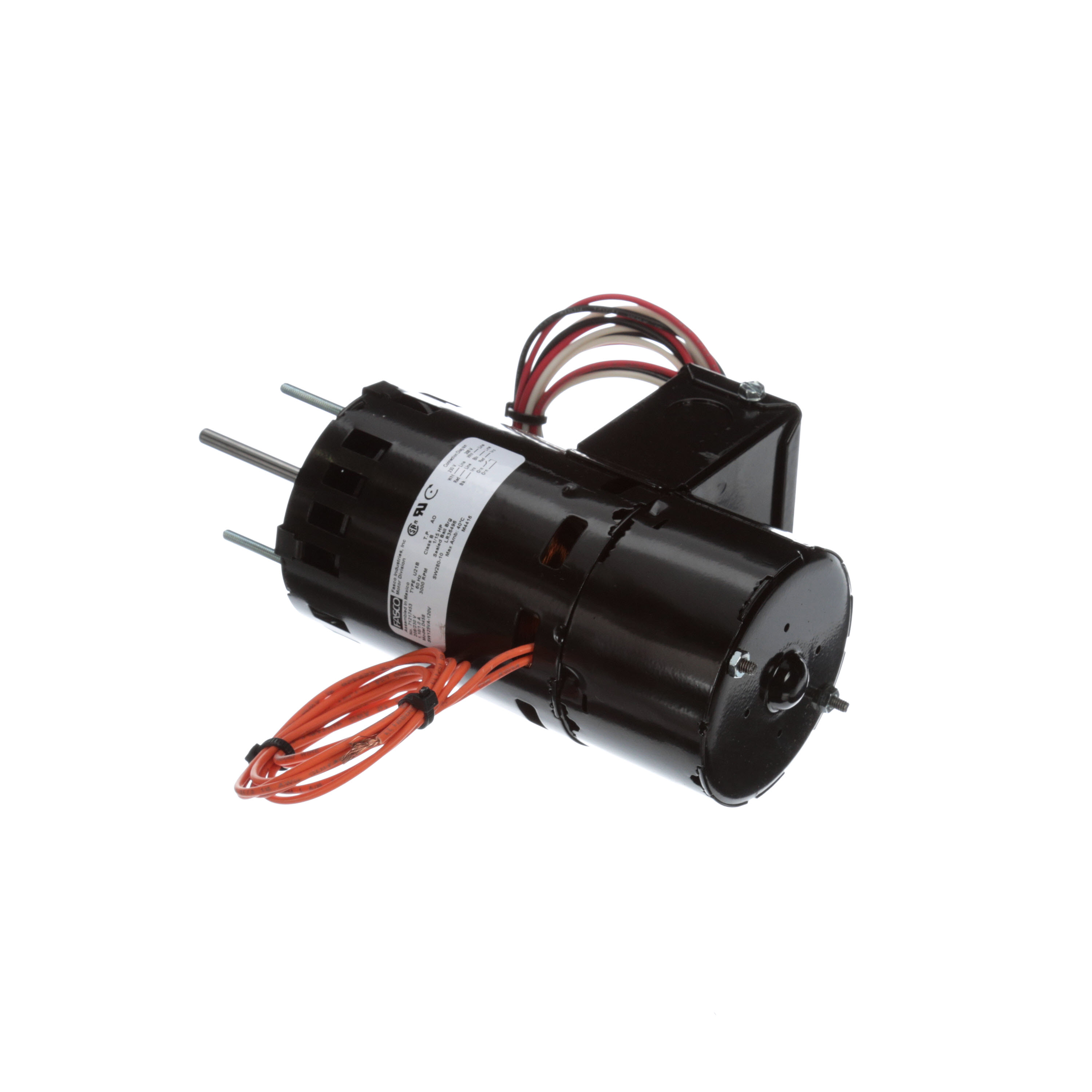

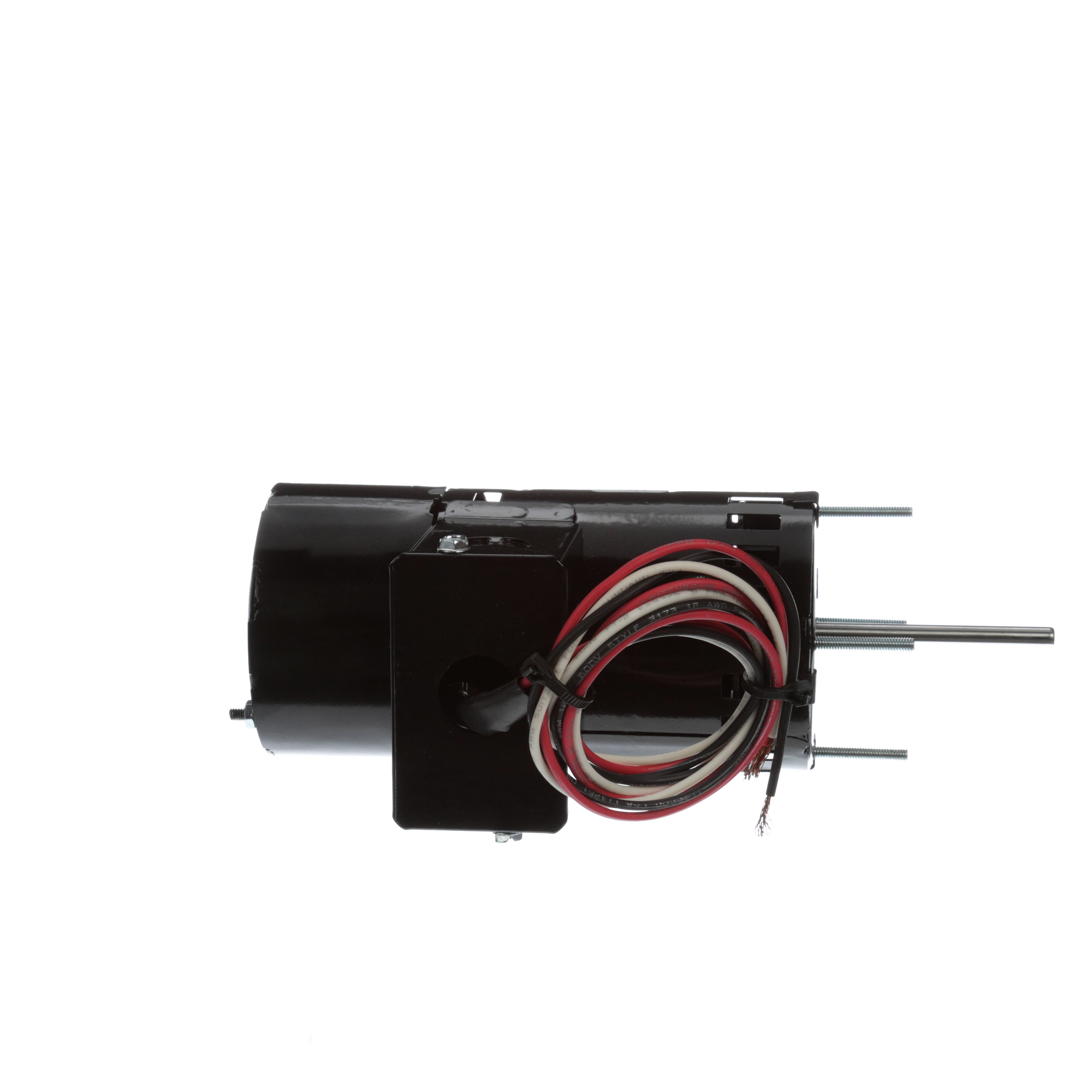

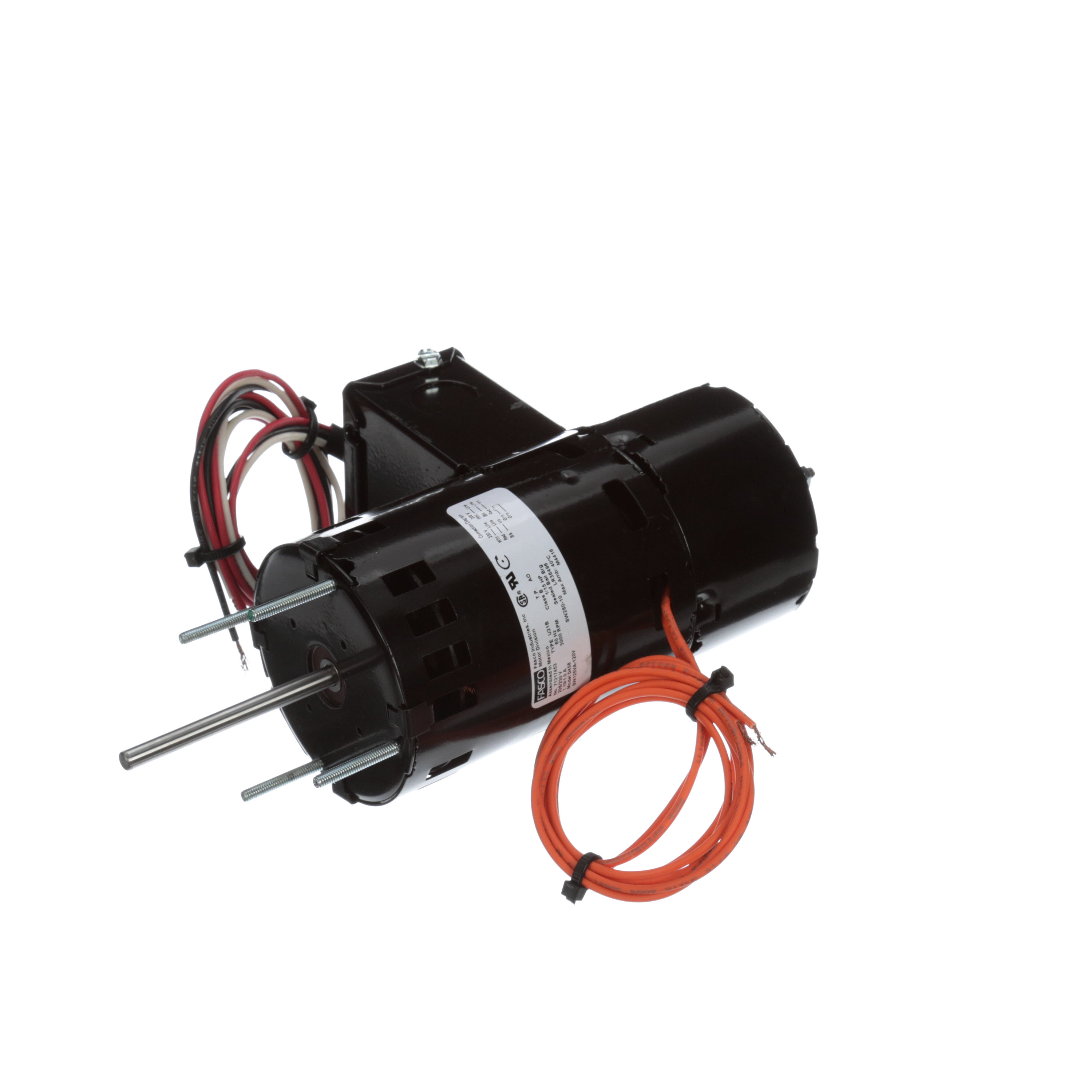

Fasco D458 1/15 HP 3000 RPM 208-230V Draft Booster Blower Motor

Dreisilker SKU: FA-RBC-D458 | UPC: 818508020037

(No reviews yet) Write a Review
Fasco D458 1/15 HP 3000 RPM 208-230 Volts Flue Exhaust & Draft Booster Blower Motor
$576.00
Product Availability
Typically Ships Within 1 Business Day
Warranty and Returns
Dreisilker products are backed by a 30-day return window and 1-year manufacturer warranty. See our return policy for full details.
Have a question? Ask the motor experts!
Call us at 866-698-3316 | Email us at info@dreisilker.com

Fasco D458 Product Description

The Fasco D458 is a Flue Exhaust Motor. Some of the specifications of the Fasco D458 Flue Exhaust Motor include: Fasco D458 1/15 HP 3000 RPM 208-230 Volts Flue Exhaust & Draft Booster Blower Motor. The warranty information for the Fasco D458 is the following: Fasco offers a 1-year manufacturer's warranty on their electric motors and motor accessories.. The Fasco D458 Typically Ships Within 1 Business Day. Some additional keywords associated with the Fasco D458 include the following: D458, 1/15 HP, 3000 RPM, 208-230 Volts, 1/15 HP 3000 RPM 208-230 Volts, 1/15 3000 208-230,FA#D458

THE DREISILKER PROCESS

Order Today

Simply click the add to cart button and check out securely today to get your order in progress.

Ships Quickly

Fast movers ship same business day when ordered by 2:00 pm CST.

Back to Normal

Get your systems up and running so you can go back to relaxing.

Fasco D458 Technical specifications

Brand

Fasco

Catalog Number

D458

Product Category

HVAC/R Motors > HVAC/R OEM Replacement Motors

HP

1/15

Volts

208/230

Frequency

60

Amps

1.10/1.0

RPM (Number of Poles)

2 (1801 RPM to 3600 RPM)

RPM (Nameplate)

3000

Speeds

1

Phase

1

Enclosure Type

Open Air Over

Rotation

Clockwise Shaft End

Mounting Type

Extended Studs

Frame Type

3.3 (in. diameter)

Frame Material

Steel

Shaft Diameter

1/4 (in.)

Shaft Extension

2.75 (in.)

Shaft Type

Flat

DE Bearing Type

Ball

ODE Bearing Type

Ball

C-Dimension

9.41 (in.)

Electrical Type

Shaded Pole

Duty

Air Over

Motor Orientation

-

Service Factor

1

Type of Overload Protector

Thermally Protected

Insulation Class

B

Max Ambient

40°C

UL

Recognized

CE

N

CSA

Y

IP Code

-

KVA Code

-

DEM Reference

FA#D458
